What is a Vector?A vector is a quantity that has both magnitude (size) and direction. Unlike scalar quantities, which are described solely by a magnitude (such as temperature or time), vectors need both magnitude and direction to be fully described.
What are Some Examples of Vectors?Common examples of vectors include displacement, velocity, acceleration, and force. For instance, saying that a car is moving at 60 km/h (a scalar) doesn't fully describe the situation. If we say the car is moving at 60 km/h to the north, then we have a vector.
How is a Vector Represented?Vectors are typically represented graphically by an arrow. The length of the arrow indicates the magnitude of the vector, and the direction of the arrow shows the direction of the vector. In writing, vectors are usually denoted by bold letters (such as v) or by letters with an arrow on top (such as v?).
How to Describe Vectors Numerically?Vectors can be described in component form. For example, a vector in a two-dimensional space can be expressed as v = (v1, v2), where v1 is the horizontal component and v2 is the vertical component. In three-dimensional space, a vector is written as v = (v1, v2, v3).
What is the Magnitude of a Vector?The magnitude of a vector is a measure of its length. For a vector v = (v1, v2) in 2D space, the magnitude is calculated using the Pythagorean theorem: ||v|| = sqrt(v1^2 + v2^2). In 3D space, for a vector u = (u1, u2, u3), the magnitude is given by ||u|| = sqrt(u1^2 + u2^2 + u3^2).
How to Add and Subtract Vectors?Vector addition can be done graphically or algebraically. Graphically, vectors are added by placing the tail of one vector at the head of the other. Algebraically, vectors are added component-wise: if a = (a1, a2) and b = (b1, b2), then a + b = (a1 + b1, a2 + b2). Subtraction is similar, but instead of adding the components, we subtract them.
What is a Unit Vector?A unit vector is a vector with a magnitude of 1. Unit vectors are often used to indicate direction. For any vector v, the unit vector u in the direction of v is given by u = v / ||v||.
What is the Dot Product?The dot product is a way of multiplying two vectors to get a scalar. For vectors a = (a1, a2) and b = (b1, b2) in 2D space, the dot product is calculated as a · b = a1b1 + a2b2. The dot product measures how much one vector extends in the direction of another.
What is the Cross Product?The cross product applies to three-dimensional vectors and results in a vector that is perpendicular to the plane formed by the original vectors. For vectors a = (a1, a2, a3) and b = (b1, b2, b3), the cross product a × b is calculated using the determinant of a matrix:
a × b = (a2b3 - a3b2, a3b1 - a1b3, a1b2 - a2b1).
The magnitude of the cross product equals the area of the parallelogram formed by the two vectors.
Why are Vectors Important?Vectors are crucial in many fields, including physics, engineering, computer graphics, and more. They provide a way to mathematically describe quantities that involve both magnitude and direction, making them indispensable tools in the analysis and understanding of various phenomena.
Understanding vectors forms the foundation for more advanced topics in mathematics and science, such as vector calculus, physics laws (force, momentum), and 3D modeling in computer graphics.

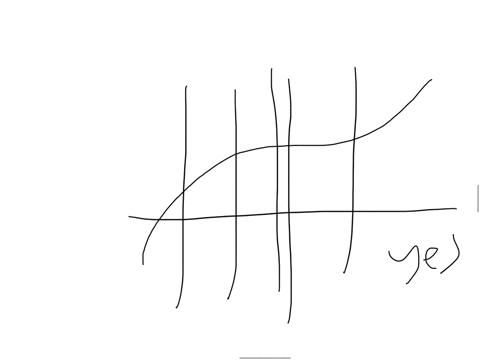

Determine whether the correspondence is a function. (Function can't copy)

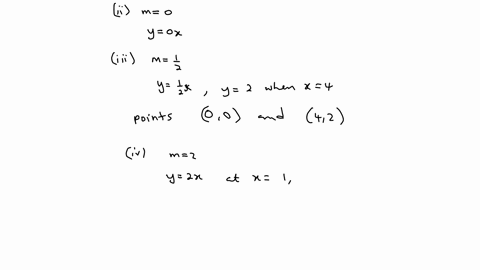

(a) Sketch lines through $(0,0)$ with slopes $1,0, \frac{1}{2}, 2,$ and $-1$ (b) Sketch lines through $(0,0)$ with slopes $\frac{1}{3}, \frac{1}{2},-…

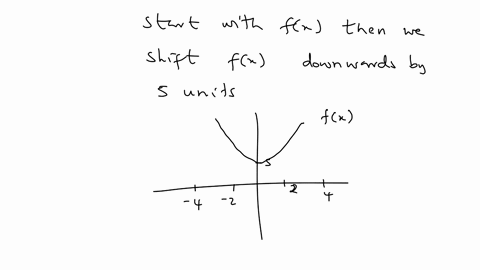

Suppose the graph of $f$ is given. Describe how the graph of each function can be obtained from the graph of $f .$ (a) $y=f(x)-5$ (b) $y=f(x-5)$

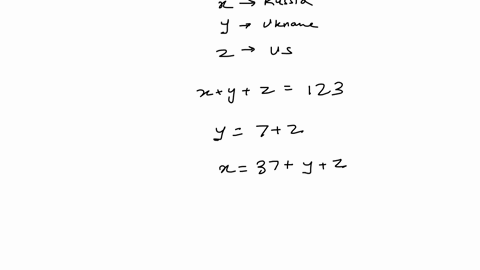

At the 2014 Paralympic Games in Sochi, Russia, the top three countries - the Russian Federation, Ukraine, and the United States-won a total of 123 me…
