What are Polar Coordinates in Mathematics? Polar coordinates represent a point in the plane by an angle and a distance. Unlike Cartesian coordinates (x, y), which use two perpendicular axes to specify a point, polar coordinates use a radius and an angle.
How are Polar Coordinates Defined? In the polar coordinate system, a point in the plane is determined by:1. Radius (r): The distance from the origin (often denoted as 'O') to the point.2. Angle (?): The counterclockwise angle from the positive x-axis to the line segment connecting the origin to the point.
What is the Origin in Polar Coordinates? The origin in the polar coordinate system is called the pole. This is the point where the radius (r) is zero.
How are Polar Coordinates Written? Polar coordinates are generally written in the form (r, ?), where:- r is the radius or distance from the origin.- ? is the angle in radians or degrees.
What is the Relationship Between Polar and Cartesian Coordinates? To convert between polar and Cartesian coordinates:- From polar to Cartesian: x = r * cos(?) y = r * sin(?)- From Cartesian to polar: r = sqrt(x^2 + y^2) ? = atan2(y, x) Example of Converting from Cartesian to Polar Coordinates:Suppose you have a point (3, 4) in Cartesian coordinates. To find its polar coordinates:1. Calculate r: r = sqrt(3^2 + 4^2) = sqrt(9 + 16) = sqrt(25) = 52. Calculate ?: ? = atan2(4, 3) ? 0.93 radians or 53.13 degrees
Thus, the polar coordinates are approximately (5, 0.93) or (5, 53.13°).
What are Some Common Uses of Polar Coordinates?Polar coordinates are especially useful in scenarios where the relationship between points is more naturally described in terms of distances and angles, such as in:- Navigation and radar systems.- Certain types of graphing, especially for periodic functions like sine and cosine.- Problems involving symmetry around a point.
How Do We Graph Equations in Polar Coordinates?- To graph a polar equation, plot points corresponding to various angles (?) and their respective radius (r) values.- Polar graphs can often create interesting shapes, such as spirals, circles, and rose curves.
Example:Consider the polar equation r = 2 + 2sin(?). To graph this:1. Choose several values of ? (e.g., 0, ?/2, ?, 3?/2).2. Calculate r for each ?.3. Plot the points (r, ?) on the polar coordinate system and join them smoothly to see the pattern.
Summary:Polar coordinates provide an alternative way of describing the location of points in the plane using a radius and angle. Understanding the conversion between polar and Cartesian coordinates extends the versatility of solving geometric problems and visualising mathematical functions.

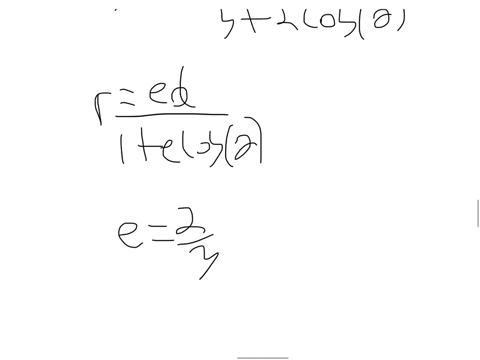

Graph each ellipse. Specify the eccentricity, the center, and the endpoints of the major and minor axes. (a) $r=\frac{6}{3+2 \cos \theta}$ (b) $r=\fr…

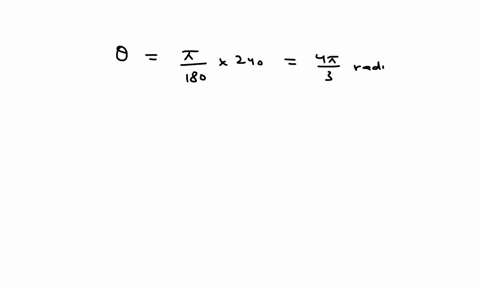

The polar coordinates of a point are $r=5.50 \mathrm{m}$ and $\theta=$ $240^{\circ} .$ What are the Cartesian coordinates of this point?
The polar coordinates of a point are $r=5.50 \mathrm{m}$ and $\theta=240^{\circ} .$ What are the Cartesian coordinates of this point?
Use a CAS to change the Cartesian integrals into an equivalent polar integral and evaluate the polar integral. Perform the following steps in each ex…
