What is a Box Plot in Mathematics? A box plot, also known as a box-and-whisker plot, is a graphical representation of a dataset that displays the distribution, central value, and variability of the data. It provides a summary of the minimum, first quartile (Q1), median (Q2), third quartile (Q3), and maximum.
How is a Box Plot Constructed? 1. Collect Data: Gather the dataset you want to represent.2. Order Data: Sort the data in ascending order.3. Calculate Quartiles: - Q1 (First Quartile): This is the median of the lower half of the dataset (excluding the median if there’s an odd number of data points). - Q2 (Median): The middle value of the dataset. - Q3 (Third Quartile): The median of the upper half of the dataset (excluding the median if there's an odd number of data points).4. Determine Minimum and Maximum Values: Identify the smallest and largest values in the dataset.5. Draw the Plot: - Draw a number line that includes the range of the dataset. - Draw a rectangle (the 'box') from Q1 to Q3. - Draw a line inside the box at Q2 (the median). - Extend 'whiskers' from Q1 to the minimum value and from Q3 to the maximum value.
What Does a Box Plot Tell Us About Data? - Spread: The length of the box (interquartile range or IQR) shows the spread of the middle 50% of the data.- Symmetry and Skewness: If the median is closer to Q1 or Q3 within the box, or if the whiskers are of different lengths, the data could be skewed.- Outliers: Values beyond 1.5 * IQR from Q1 or Q3 are considered outliers and are often plotted as individual points.
Why Use a Box Plot? - Comparative Analysis: Box plots are particularly useful for comparing distributions between different datasets.- Visual Efficiency: They provide a high-level summary of the data in a single image.- Identify Outliers: Easily identify potential outliers within a dataset.
Example: Consider the dataset: 3, 7, 8, 5, 12, 14, 21, 13, 18 1. Order the Data: 3, 5, 7, 8, 12, 13, 14, 18, 212. Find the Median (Q2): 123. Find Q1: Median of first half: 5, 7, 8 = 74. Find Q3: Median of second half: 13, 14, 18 = 145. Minimum and Maximum: 3 and 21
Construct the box plot:- Minimum value: 3- Q1: 7- Median (Q2): 12- Q3: 14- Maximum value: 21
This box plot visually represents the spread and central tendency of the data, indicating how the values are distributed and highlighting any potential outliers.

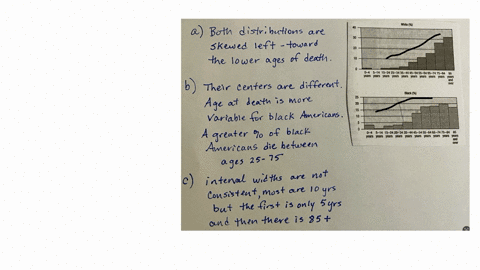

A National Vital Statistics Report (www.cdc.gov/nchs/) indicated that nearly 290,000 black Americans died in 2009, compared with just over 2 mil- lio…

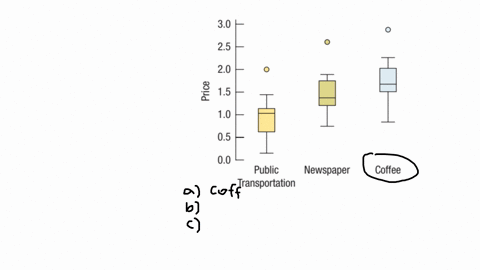

To help travelers know what to expect, researchers collected the prices of commodities in 16 cities through out the world. Here are box plots compari…
