What is the 'Design of Experiments' in Mathematics?
The Design of Experiments (DOE) is a systematic method used to determine the relationship between factors affecting a process and the output of that process. In mathematics and statistics, DOE plays a critical role in developing models that predict the behavior of systems under various conditions.
Why is Design of Experiments Important?
The Design of Experiments is crucial because it allows researchers and engineers to:1. Identify the most influential variables affecting a process.2. Determine the optimal settings for these variables to achieve desired outcomes.3. Enhance the efficiency and effectiveness of experiments by minimizing the number of trials needed.4. Improve quality by understanding and controlling variability in processes.
What are the Key Concepts in the Design of Experiments?
Several key concepts are fundamental to understanding and applying DOE:
1. Factors and Levels: Factors are the independent variables that are manipulated during the experiment. Each factor has different levels, which are the specific values or conditions it can take.
2. Response Variable: This is the dependent variable that is measured to assess the effect of the factors.
3. Treatment: A treatment is a specific combination of factor levels applied in an experiment.
4. Randomization: The process of randomly assigning treatments to experimental units to ensure that the results are not biased by external or uncontrolled factors.
5. Replication: Repeating the experiment multiple times to ensure that the results are consistent and reliable.
6. Blocking: Grouping experimental units that are similar to reduce variability due to known but uncontrollable factors.
How is an Experiment Designed?
To design an experiment effectively, one follows a carefully structured process:
1. Define the Problem and Objectives: Clearly state the problem and what you intend to achieve with the experiment.
2. Select Factors, Levels, and Ranges: Identify the factors to be tested, the levels at which each factor will be varied, and the range over which the factor levels will be explored.
3. Choose the Experimental Design: Select an appropriate design based on the objectives, such as Full Factorial, Fractional Factorial, or Response Surface Methodology.
4. Randomize and Replicate: Ensure treatments are randomly assigned and plan for enough replication to validate results.
5. Conduct the Experiment: Perform the experiment according to the designed protocol.
6. Analyze the Data: Use statistical methods to analyze the data and interpret the results, often employing Analysis of Variance (ANOVA) or regression analysis.
7. Draw Conclusions and Verify: Based on the analysis, draw conclusions and, if necessary, conduct additional experiments to verify the findings.
Examples of Experimental Designs
1. Full Factorial Design: - An experiment where all possible combinations of factors and levels are tested. - Example: If you have 2 factors (A and B) and each factor has 2 levels (low and high), a full factorial design will require 4 experiments (LL, LH, HL, HH).
2. Fractional Factorial Design: - A reduced version of the full factorial design that tests only a subset of all possible combinations. - Example: Using the same factors A and B with 2 levels each, a fractional factorial design may test only 2 combinations (LL and HH).
3. Response Surface Methodology (RSM): - Used to model and optimize processes. It involves conducting experiments to fit a mathematical model and using this model to find optimal conditions. - Example: If a chemical process depends on temperature and pressure, RSM can help identify the precise temperature and pressure that maximize yield.
What are the Limitations of Design of Experiments?
While DOE is powerful, it has some limitations:1. Complexity: Designing experiments can be complex and require a solid understanding of statistical methods.2. Resource Intensive: Large experiments can be costly and time-consuming.3. Assumptions: The validity of conclusions depends on the accuracy of model assumptions.
By understanding and properly applying the principles of the Design of Experiments, one can significantly enhance the efficiency and outcomes of research and industrial processes.

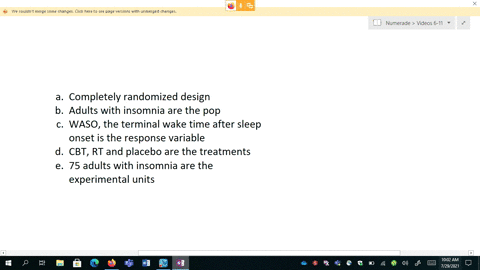

Researchers Jack D. Edinger and associates wanted to test the effectiveness of a new cognitive behavioral therapy (CBT) compared with both an older b…
A pharmaceutical company has developed an experimental drug meant to relieve symptoms associated with the common cold. The company identifies 300 adu…
A school psychologist wants to test the effectiveness of a new method for teaching reading. She recruits 500 first-grade students in District 203 and…
What is the role of randomization in a designed experiment? If you were conducting a completely randomized design with three treatments and 90 experi…
