What are Elasticity and Plasticity in Physics?
Elasticity and plasticity are two fundamental concepts in materials science and continuum mechanics, describing how materials deform and return to their original shape (or fail to do so) when subjected to external forces.
Elasticity:
1. Definition: Elasticity refers to the property of a material to deform (stretch, compress, or bend) under load and return to its original shape upon removal of the load. 2. Example: Consider a rubber band. When you stretch a rubber band and then let go, it returns to its original length. This behavior demonstrates the elasticity of the material.
3. Spring-Mass System: In a spring-mass system, the force exerted by the spring is proportional to the deformation (stretching or compression) of the spring, as stated by Hooke’s Law: Hooke's Law: F = k * x where F is the force applied, k is the spring constant, and x is the displacement from the equilibrium position.
4. Elastic Limit: The maximum extent to which a material can be deformed without undergoing permanent deformation. If the material is stretched beyond this limit, it will no longer return to its original shape even when the force is removed.
Plasticity:
1. Definition: Plasticity describes the deformation of a material undergoing non-reversible changes when subjected to external forces. This means the material will not return to its original shape once the force is removed. 2. Example: Bending a metal rod and observing how it stays bent after releasing it illustrates plasticity. The metal has undergone permanent deformation and cannot revert to its original form.
3. Yield Point: It is the stress level at which a material starts to deform plastically. Up to this point, the material deforms elastically and can return to its original state, but beyond this point, the material deforms permanently.
4. Applications: Plasticity is important in forming and shaping materials. For example, metalworking processes like forging and molding depend on the plastic behavior of metals to create desired shapes.
Elastic and Plastic Behavior in Stress-Strain Curve:
The relationship between stress (?) and strain (?) in materials can be visualized using a stress-strain curve, which provides a comprehensive understanding of both elastic and plastic behavior.
- Elastic Region: The initial linear portion of the curve represents the elastic behavior. Within this region, the material will return to its original shape after the removal of stress. - Yield Point: The point on the curve where the material transitions from elastic to plastic behavior. Beyond the yield point, any deformation will be permanent. - Plastic Region: The curve becomes non-linear and extends in this region, indicating permanent deformation. The slope of the curve in this region is much less than in the elastic region.
In summary, understanding elasticity and plasticity is crucial for predicting how materials will behave under different types of loads and designing structures that can withstand those loads without failure.
A box of negligible mass rests at the left end of a 2.00-m, 25.0-kg plank ($\textbf{Fig. P11.43}$). The width of the box is 75.0 cm, and sand is to b…
Mountaineers often use a rope to lower themselves down the face of a cliff (this is called $rappelling$). They do this with their body nearly horizon…
A worker wants to turn over a uniform, 1250-N, rectangular crate by pulling at 53.0$^\circ$ on one of its vertical sides ($\textbf{Fig. P11.65}$). Th…

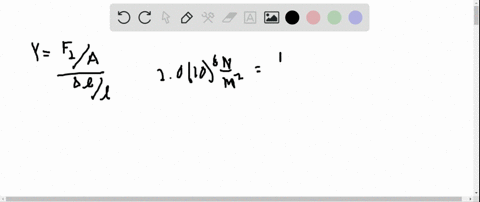

(III) A scallop forces open its shell with an elastic material called abductin, whose Young's modulus is about $2.0 \times 10^6 N/m^2$. If this piece…
