What is Rigid-Body Equilibrium in Physics?
Rigid-body equilibrium refers to a state in which a rigid body remains at rest or moves with constant velocity, indicating that the sum of all the forces and moments acting on it are zero. This concept is crucial in mechanics as it forms the basis for analyzing systems where the assumption of a rigid body (an object with a fixed shape that does not deform) holds true.
What Conditions Must be Met for a Rigid Body to Be in Equilibrium?
For a rigid body to be in equilibrium, two primary conditions must be satisfied:
1. Translational Equilibrium: The vector sum of all external forces acting on the body must be zero. - Mathematically: ?F = 0 - This means there is no net force acting on the body, so it will not accelerate in any direction. 2. Rotational Equilibrium: The vector sum of all external torques (moments) acting on the body about any axis must be zero. - Mathematically: ?M = 0 - This implies there is no net torque, so the body will not have any angular acceleration about that axis.
How Can We Represent Forces and Moments in Equilibrium Problems?
When analyzing rigid-body equilibrium, it's essential to properly represent forces and moments. Here’s how you typically do this:
- Free-Body Diagram (FBD): A crucial step in solving equilibrium problems involves drawing a Free-Body Diagram. The FBD is a simplified representation of the body, isolating it from its surroundings and showing all the external forces and moments acting on it.
- Equilibrium Equations: - For translational equilibrium: ?Fx = 0, ?Fy = 0, and ?Fz = 0 (if dealing with three-dimensional problems). - For rotational equilibrium: ?Mx = 0, ?My = 0, and ?Mz = 0 (about any chosen axis).
Can You Provide an Example of How to Determine Rigid-Body Equilibrium?
Certainly. Consider a simple example of a horizontal beam supported at two points (a classic statics problem).
1. Identify the Forces: Assume the beam is loaded with a uniform load and there are support reactions at the points A and B. - The weight of the beam acts downward (consider as W). - The reaction forces at supports A and B, usually unknown initially, are represented as RA and RB respectively.
2. Draw the Free-Body Diagram:
3. Set Up the Equilibrium Equations: - Apply translational equilibrium in the vertical direction: ?Fy = 0: RA + RB - W = 0
- Apply rotational equilibrium around point A (to eliminate RA from the equation): ?MA = 0: (RB * L) - (W * L/2) = 0 In this equation, L is the length of the beam.
4. Solve the Equations: - From the moment equation: (RB * L) = (W * L/2), which simplifies to: RB = W/2 - Substitute RB back into the force equilibrium equation: RA + (W/2) - W = 0 RA = W - W/2 RA = W/2
Therefore, both RA and RB are equal to W/2, indicating the beam is in equilibrium with these reactions balancing the applied load.
Why is Understanding Rigid-Body Equilibrium Important?
Understanding rigid-body equilibrium is fundamental in various fields such as civil engineering, mechanical engineering, and physics because it allows for the design and analysis of structures and mechanical systems. Knowing how to ensure equilibrium helps in predicting and preventing potential failures, ensuring stability and safety.
By mastering rigid-body equilibrium, students can approach more complex problems with confidence and develop a keen understanding of fundamental physical concepts governing the stability and motion of structures.
A wheel is rotated so that a point on the edge moves through $1.50 \mathrm{m}$. The radius of the wheel is $2.50 \mathrm{m},$ as shown in Figure $8-2…
Merry-Go-Round While riding a merry-go-round, you toss a key to a friend standing on the ground. For your friend to be able to catch the key, should …

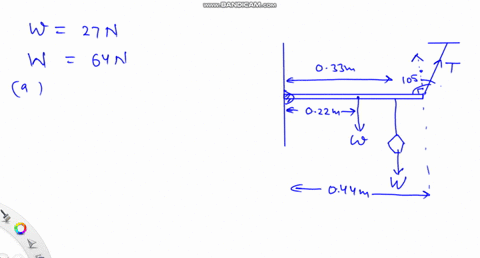

Analyze and Conclude A pivoted lamp pole is shown in Figure $8-31 .$ The pole weighs $27 \mathrm{N},$ and the lamp weighs $64 \mathrm{N}.$ a. What is…
