What is Alternating Current (AC)?Alternating current (AC) is a type of electrical current in which the direction of the flow of electrons switches back and forth at regular intervals or cycles. This is different from direct current (DC), where the flow of electrons is unidirectional.
What are the Characteristics of Alternating Current?1. Frequency: The number of cycles per second, measured in Hertz (Hz). In most countries, the standard frequency is 50 Hz or 60 Hz.2. Amplitude: The maximum value of the current or voltage. It represents the peak value.3. Phase: The position of the waveform in time, often measured in degrees.
How is Alternating Current Represented?- AC can be represented by a sinusoidal wave, which shows the periodic rise and fall of voltage and current.- The mathematical representation often involves sine and cosine functions.
What are the Advantages of Alternating Current?1. Efficient Transmission: AC can be easily transformed to different voltages using a transformer, allowing for efficient power transmission over long distances.2. Versatility: Most household and industrial electronics and appliances are designed to operate on AC.3. Generation: AC is easier to generate using large generators at power plants.
What are the Disadvantages of Alternating Current?1. Complexity of Design: AC systems require more complex design elements such as transformers and more sophisticated insulation.2. Energy Losses: AC transmission can involve energy losses due to inductance and capacitance in the wires.
Where is Alternating Current Used?- Residential: AC is the standard form of electrical power delivered to homes.- Commercial: AC powers businesses and industrial operations.- Electrical Grids: AC is used for distributing electricity across large distances.
What is the Difference Between AC and DC?- Direction: DC flows in one direction, while AC reverses direction periodically.- Sources: DC is typically obtained from batteries or DC power supplies, while AC is generated by alternators or obtained from the power grid.- Applications: AC is commonly used for powering homes and businesses, whereas DC is used in electronic devices, automotive, and some industrial applications.
What are Some Real-World Examples of AC?1. Household Outlets: The standard power outlets in homes provide AC.2. Power Lines: High-voltage power lines transmitting electricity over long distances use AC.3. Machinery: Many industrial machines and appliances like refrigerators, air conditioners, and washing machines run on AC.
By understanding the concept of alternating current, its properties, advantages, disadvantages, and applications, students can appreciate how power is generated, transmitted, and used in various aspects of daily life.

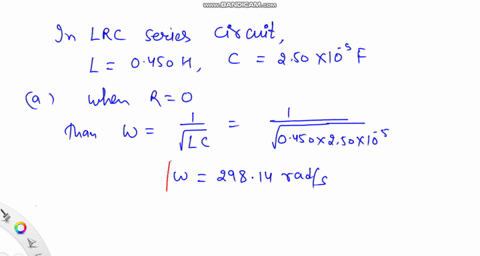

An $L$-$R$-$C$ series circuit has $L = 0.450$ H, $C = 2.50 \times 10^{-5} \, \mathrm{F}$, and resistance $R$. (a) What is the angular frequency of th…

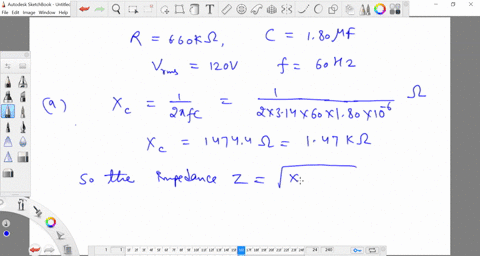

(III) ($a$) What is the rms current in an RC circuit if $R =$ 6.60 k$\Omega, C =$ 1.80 $\mu$F, and the rms applied voltage is 120 V at 60.0 Hz? ($b$…

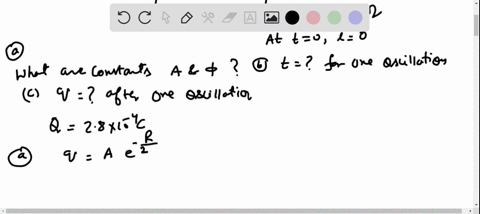

An $L$-$R$-$C$ series circuit has $L = 0.400$ H, $C = 7.00 \, \mu \mathrm{F}$, and $R = 320 \, \Omega$. At $t = 0$ the current is zero and the initia…

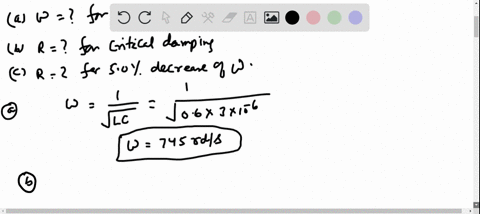

An $L$-$R$-$C$ series circuit has $L = 0.600$ H and $C = 3.00 \, \mu \mathrm{F}$. (a) Calculate the angular frequency of oscillation for the circuit …
