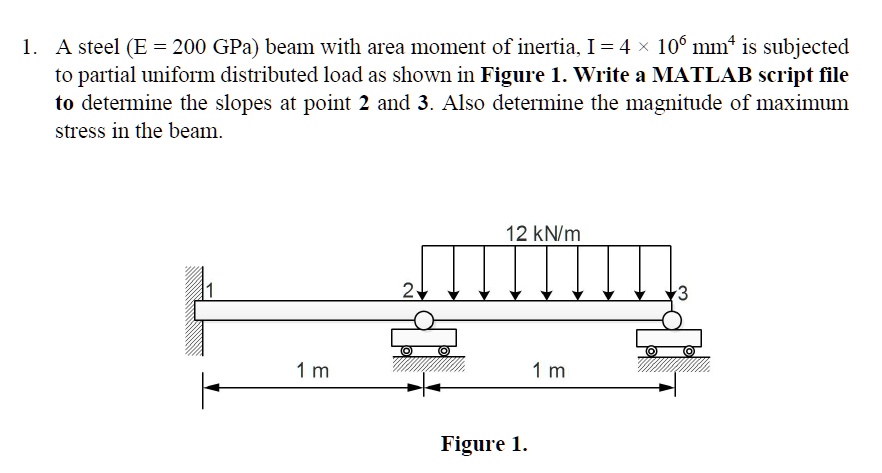

1. A steel (E = 200 GPa) beam with area moment of inertia, I = 4 $\times$ 10$^6$ mm$^4$ is subjected to partial uniform distributed load as shown in Figure 1. Write a MATLAB script file to determine the slopes at point 2 and 3. Also determine the magnitude of maximum stress in the beam. 12 kN/m 1 m 1 m Figure 1.

Name: 1 a steel e 200 gpa beam with area moment of inertia i 4 times 106 mm4 is subjected to partial uniform distributed load as shown in figure 1 write a matlab script file to determine the slope 70729
Uploaded: 2023-07-30T07:36:50-08:00
Duration: 6 min 48 s
Channel: Sri K
Description: 1 a steel e 200 gpa beam with area moment of inertia i 4 times 106 mm4 is subjected to partial uniform distributed load as shown in figure 1 write a matlab script file to determine the slope 70729

          1. A steel (E = 200 GPa) beam with area moment of inertia, I = 4 $\times$ 10$^6$ mm$^4$ is subjected to partial uniform distributed load as shown in Figure 1. Write a MATLAB script file to determine the slopes at point 2 and 3. Also determine the magnitude of maximum stress in the beam.
12 kN/m
1 m
1 m
Figure 1.

1 a steel e 200 gpa beam with area moment of inertia i 4 times 106 mm4 is subjected to partial uniform distributed load as shown in figure 1 write a matlab script file to determine the slope 70729

Added by Stephanie A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

07/30/2023

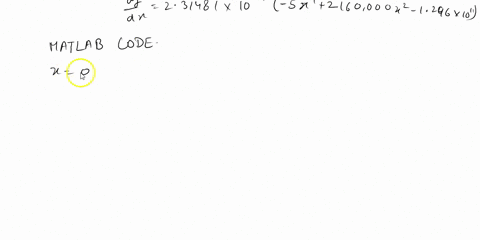

Step 1

The beam is a cantilever beam with two roller supports. This is a statically indeterminate beam. We will use the superposition method to solve this problem. Given data: Modulus of Elasticity, E = 200 GPa = 200 $\times$ 10$^9$ N/m$^2$ Area moment of inertia, I = 4 Show more…
