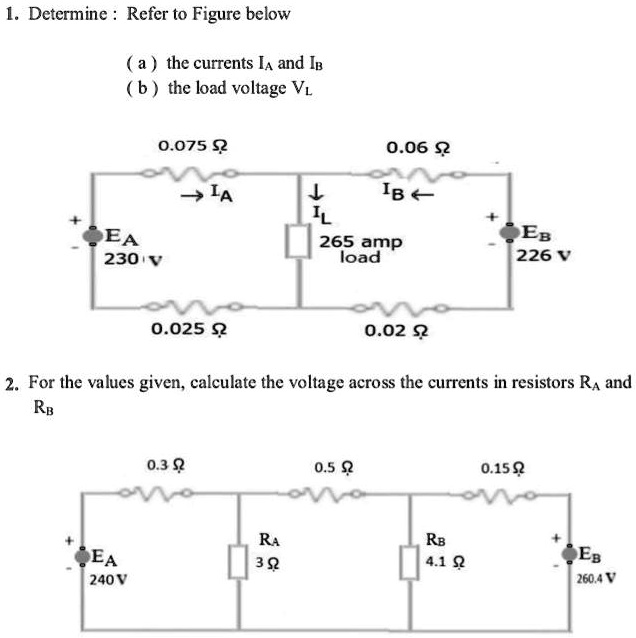

1. Determine: Refer to Figure below (a) the currents IA and IB (b) the load voltage VL + EA 230 V 0.075 ? 0.06 ? IA ? IL ? IB ? 265 amp load + EB 226 V 0.025 ? 0.02 ? 2. For the values given, calculate the voltage across the currents in resistors RA and RB 0.3 ? 0.5 ? 0.15 ? + EA 240 V EB 260.4 V RA 3 ? RB 4.1 ?

          1. Determine: Refer to Figure below
(a) the currents IA and IB
(b) the load voltage VL

+ EA 230 V
0.075 ?      0.06 ?
IA ?      IL ?      IB ?
265 amp load
+ EB 226 V
0.025 ?      0.02 ?

2. For the values given, calculate the voltage across the currents in resistors RA and RB
0.3 ?      0.5 ?      0.15 ?
+ EA 240 V                          EB 260.4 V
RA 3 ?      RB 4.1 ?

1. Determine: Refer to Figure below
(a) the currents IA and IB
(b) the load voltage VL

+ EA 230 V
0.075 ? 0.06 ?
IA ? IL ? IB ?
265 amp load
+ EB 226 V
0.025 ? 0.02 ?

2. For the values given, calculate the voltage across the currents in resistors RA and RB
0.3 ? 0.5 ? 0.15 ?
+ EA 240 V EB 260.4 V
RA 3 ? RB 4.1 ?

Added by Jes-S C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/23/2023

Step 1

It seems like we are dealing with a parallel circuit where EA and EB are the voltages of two sources, and RA and RB are the resistances in each branch. The load is connected across these branches, and we are given the resistances in the lines leading to the load Show more…

Show all steps

Thanks for your feedback!

Determine the currents IA and IB and the load voltage VL. 0.075 Ω 0.06 Ω EA = 230 V 265 amp load EB = 226 V 0.025 Ω 0.02 Ω For the given values, calculate the voltage across the resistors RA and RB. 0.3 Ω 0.5 Ω 0.15 Ω RA = 3 Ω RB = 4.1 Ω EA = 240 V EB = 260.4 V
