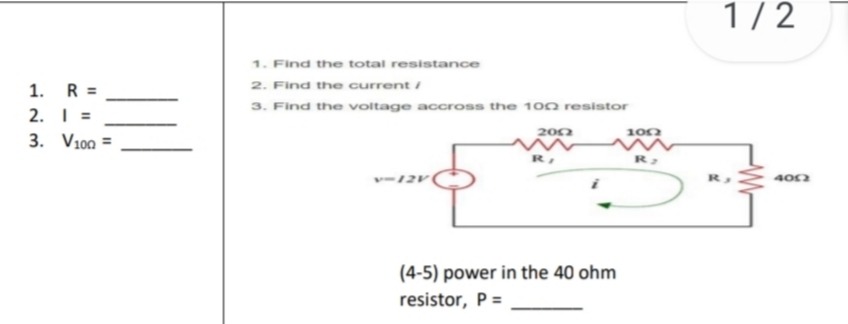

1. R = 1. Find the total resistance 2. I = 2. Find the current i 3. V10? = 3. Find the voltage accross the 10? resistor v=12V 20? R1 10? R2 R3 40? (4-5) power in the 40 ohm resistor, P =
Added by Umay A.
Close
Step 1
Given resistances: - \(R_1 = 20 \Omega\) - \(R_2 = 10 \Omega\) - \(R_3 = 40 \Omega\) Total resistance, \(R_{\text{total}} = R_1 + R_2 + R_3\) \(R_{\text{total}} = 20 \Omega + 10 \Omega + 40 \Omega\) \(R_{\text{total}} = 70 \Omega\) ** Show more…
Show all steps
Your feedback will help us improve your experience
Rahul Kumar and 62 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
1. R₁ = 10 Ω, R₂ = 30 Ω, R₃ = 40 Ω, R₄ = 60 Ω; V = 220 V. (a) Find the total resistance of the circuit; (b) Find the current in the resistor R₁ and the voltage across the resistor R₃.
Suman K.

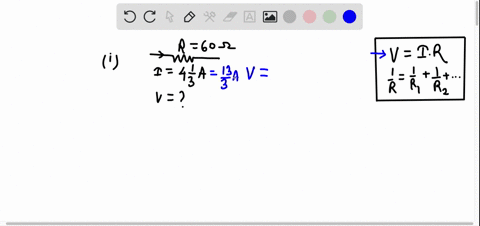

1. What is the voltage across a 60.0 ohm resistor with a current of 4 1/3 amp? 2 Total resistance of 10 resistors in parallel each 100 Ohms?
Pritesh R.
pls try to draw total curcuit
Timothy J.
