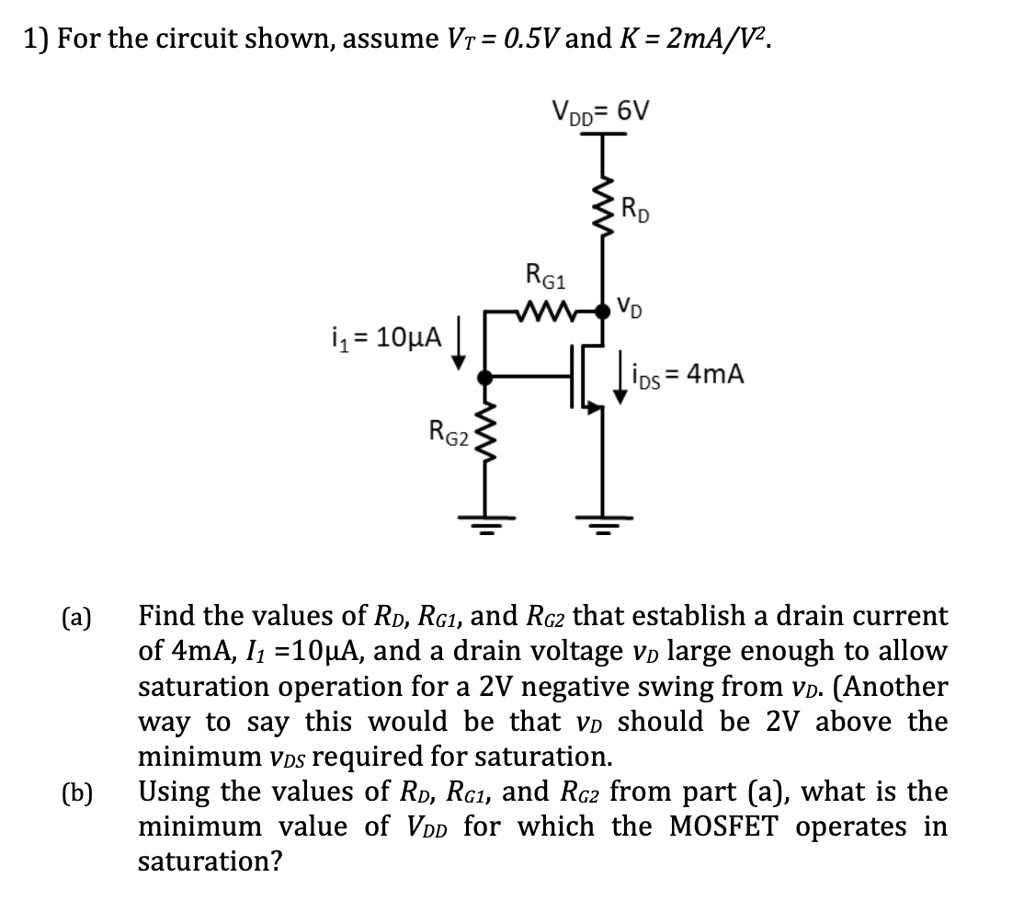

1) For the circuit shown, assume VT = 0.5V and K = 2mA/V^2. VDD = 6V RD RG1 VD i1 = 10µA iDS = 4mA RG2 (a) Find the values of RD, RG1, and RG2 that establish a drain current of 4mA, I1 = 10µA, and a drain voltage VD large enough to allow saturation operation for a 2V negative swing from VD. (Another way to say this would be that VD should be 2V above the minimum VDS required for saturation.) (b) Using the values of RD, RG1, and RG2 from part (a), what is the minimum value of VDD for which the MOSFET operates in saturation?
Added by Tammy W.
Close
Step 1
Substituting the given values, we get: 4mA = (Z/2)(6V - 10pA(RG1 + RD) + VD)^2 Simplifying and solving for RD, we get: RD = (Vop - VD)/(Ids/Z - i1(RG1 + RD)) Substituting the given values, we get: RD = (6V - VD)/(4mA/Z - 10pA(RG1 + RD)) Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 70 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Supreeta N.
An NMOS transistor, operating in the linear-resistance region with $v_{D S}=0.1 \mathrm{V},$ is found to conduct $60 \mu \mathrm{A}$ for $v_{G s}=2 \mathrm{V}$ and $160 \mu \mathrm{A}$ for $v_{\mathrm{CS}}=4 \mathrm{V}$. What is the apparent value of threshold voltage $V_{t} ?$ If $k_{n}^{\prime}=50 \mu \mathrm{A} / \mathrm{V}^{2},$ what is the device $W / L$ ratio? What current would you expect to flow with $v_{\mathrm{GS}}=3 \mathrm{V}$ and $v_{\mathrm{DS}}=0.15 \mathrm{V} ?$ If the device is operated at $v_{G S}=3 \mathrm{V}$, at what value of $v_{\text {DS }}$ will the drain end of the MOSFET channel just reach pinch-off, and what is the corresponding drain current?
Manish J.
An NMOS differential amplifier employing equal drain resistors, $R_{D}=47 \mathrm{k} \Omega,$ has a differential gain $A_{d}$ of $20 \mathrm{V} / \mathrm{V}$ (a) What is the value of $g_{m}$ for each of the two transistors? (b) If each of the two transistors is operating at an overdrive voltage $V_{O V}=0.2 \mathrm{V}$, what must the value of $1 \mathrm{be}$ ? (c) For $v_{i d}=0,$ what is the de voltage across each $R_{D} ?$ (d) If $v_{i d}$ is 20 -m $V$ peak-to-peak sine wave applied in a balanced manner but superimposed on $V_{C M}=0.5 \mathrm{V}$, what is the lowest value that $V_{D D}$ must have to ensure saturation mode operation for $Q_{1}$ and $Q_{2}$ at all times? Assume $V_{t}=0.5 \mathrm{V}$
