1) (Laplace equation in two dimensions) (a) Consider complex coordinates z = x + i y and the 45 degree "cake slice" V = {z ? C | arg(z) ? [0, ?/4], |z| ? [0,a]} in the complex plane. Using complex methods, find solutions ? to the two-dimensional Laplace equation on V which satisfy the boundary conditions ?|_{arg z = 0} = 0 = ?|_{arg z = ?/4}. (b) From the solutions found in part (a), select the one which, in addition, satisfies the boundary condition ?|_{|z|=a} = h, where h : [0, ?/4] ? R is a given function. (c) Show that the most general solution to the two-dimensional Laplace equation in polar coordinates can be written as ?(r,?) = a0/2 + 5a0 ln r + 55555555555 555 (a_k r^k +
Added by Nathan S.
Close
Step 1
Let Φ(θ, r) = Θ(θ)R(r) be the separation of variables. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 98 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the Laplace equation problem in the rectangle 0 < x < 3 and 0 < y < 4: u_{xx} + u_{yy} = 0 u(0, y) = 0; u(3, y) = f(y) u(x, 0) = 0; u(x, 4) = 0 If you were to solve this problem by separation of variables by writing u(x, y) = X(x)Y(y), what would be the solutions for X_{n} and Y_{n}? (a) X_{n} = sin (frac{npi x}{3}); Y_{n} = cos (frac{npi y}{4}) (b) X_{n} = sin (frac{npi x}{3}); Y_{n} = sin (frac{npi y}{4}) (c) X_{n} = - tanh (frac{3npi}{4}) cosh (frac{npi x}{4}) + sinh (frac{npi x}{4}); Y_{n} = sin (frac{npi y}{4}); (d) There is no solution (e) None of these (f) X_{n} = sinh (frac{npi x}{4}); Y_{n} = sin (frac{npi y}{4}) (g) X_{n} = sin (frac{npi x}{3}); Y_{n} = - tanh (frac{4npi}{3}) cosh (frac{npi y}{3}) + sinh (frac{npi y}{3}) (h) X_{n} = sin (frac{npi x}{3}); Y_{n} = sinh (frac{npi y}{3}) (i) X_{n} = tan (frac{4npi}{3}) cos (frac{npi x}{3}); Y_{n} = sin (frac{npi y}{4}) (j) X_{n} = tan (frac{4npi}{3}) cos (frac{npi x}{3}); Y_{n} = cos (frac{npi y}{4})
Adi S.

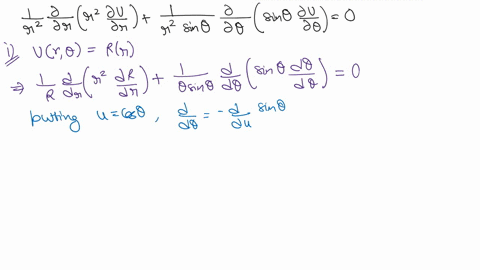

Consider a three-dimensional potential U which obeys the Laplace equation ∇²U = 0. In spherical polar coordinates (r, θ, ϕ), and assuming that the potential does not depend on ϕ, the Laplace equation can be written as 1/r² ∂/∂r (r² ∂U/∂r) + 1/(r² sin θ) ∂/∂θ (sin θ ∂U/∂θ) = 0. (i) We can solve the Laplace equation using a trial function U(r, θ) = R(r)Θ(θ). Show that 1/R d/dr (r² dR/dr) = k, and 1/Θ d/dμ ((1 - μ²) dΘ/dμ) + k = 0, where μ = cos θ and k is a constant. (ii) You may assume that the differential equation for Θ has valid solutions given by the Legendre polynomials Pℓ(μ) only when k = ℓ(ℓ + 1), where ℓ = 0, 1, 2, 3, ... are positive integers. Show that R ∝ rᴬ is a valid solution, and determine the two possible values of A in terms of the numbers ℓ. (iii) Suppose that the angular dependence of the potential on the surface of the unit sphere is given by Θ(θ) = 1/2 (3 cos² θ - 1). Using your result from (ii), find the potential both inside and outside the sphere (no sources) assuming that R(r = 1) = 1. Hints: Recall the second Legendre polynomial P₂(μ) = 1/2 (3μ² - 1), and ∫₋₁¹ dμ Pℓ(μ) Pₘ(μ) = { 2/(2m + 1) (l = m), 0 (l ≠ m).
Sri K.

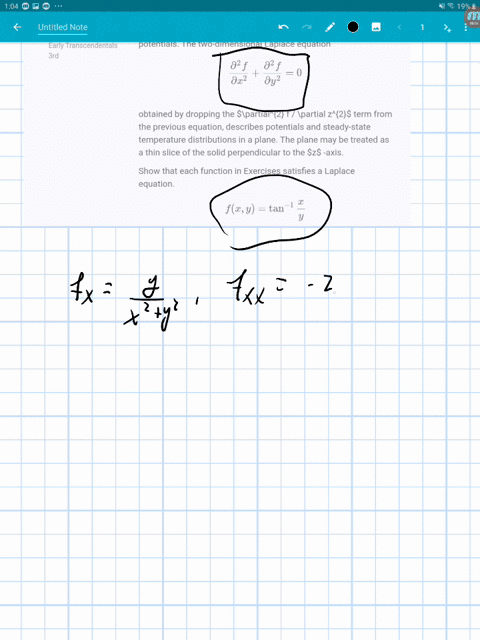

The three-dimensional Laplace equation $\mathbb\quad \frac{\partial^{2} f}{\partial x^{2}}+\frac{\partial^{2} f}{\partial y^{2}}+\frac{\partial^{2} f}{\partial z^{2}}=0$ is satisfied by steady-state temperature distributions $T=f(x, y, z)$ in space, by gravitational potentials, and by electrostatic potentials. The two-dimensional Laplace equation $$ \frac{\partial^{2} f}{\partial x^{2}}+\frac{\partial^{2} f}{\partial y^{2}}=0 $$ obtained by dropping the $\partial^{2} f / \partial z^{2}$ term from the previous equation, describes potentials and steady-state temperature distributions in a plane. The plane may be treated as a thin slice of the solid perpendicular to the $z$ -axis. Show that each function in Exercises satisfies a Laplace equation. $$f(x, y)=\tan ^{-1} \frac{x}{y}$$
