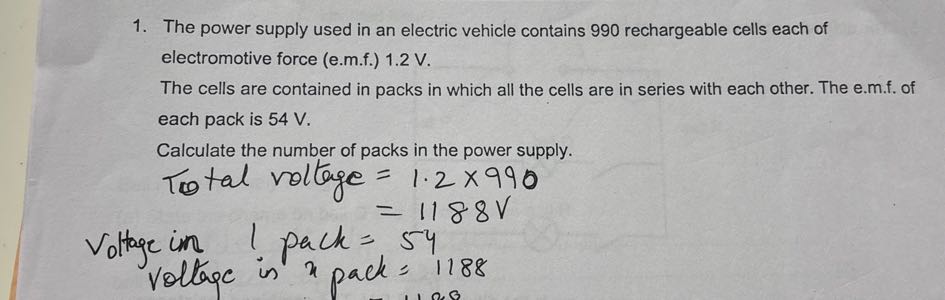

1. The power supply used in an electric vehicle contains 990 rechargeable cells each of electromotive force (e.m.f.) 1.2 V . The cells are contained in packs in which all the cells are in series with each other. The e.m.f. of each pack is 54 V . Calculate the number of packs in the power supply. Total voltage \( =1.2 \times 990 \) \( =1188 \mathrm{~V} \) Voltage in ! pack=54 voltage is \( x \) pack \( =1188 \)
Added by Aaron M.
Close
Step 1
m.f.) of all the cells combined. - Each cell has an e.m.f. of 1.2 V. - There are 990 cells. - Total e.m.f. = \(1.2 \, \text{V} \times 990 = 1188 \, \text{V}\). Show more…
Show all steps
Your feedback will help us improve your experience
Melissa Walsh and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

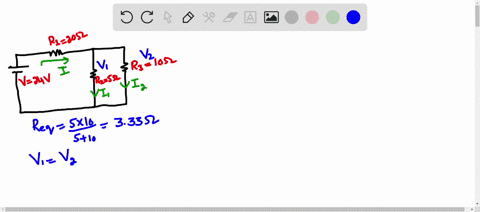

2 resistors with resistances of 5.00 ohms, 10.0 ohms are in a parallel combination, and connected in series with a 20.0 ohms resistor. All 3 of these resistors are then connected in series to a 24.0 V battery. Determine the current and voltage across each of these resistors.
Sikandar B.

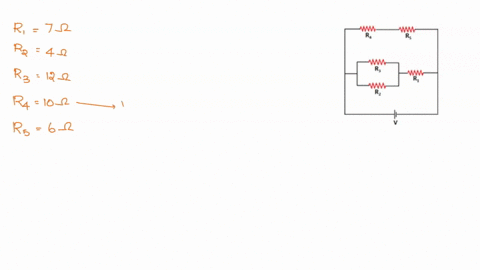

8. Five resistors R1=7.00 Ω, R2=4.00 Ω, R3=12.0 Ω, R4=10.0 Ω, and R5=7.00 Ω are mounted as shown in the figure. The voltage of the battery is V = 22 Volts. What is the current in the R4 resistor? Amps
Sri K.

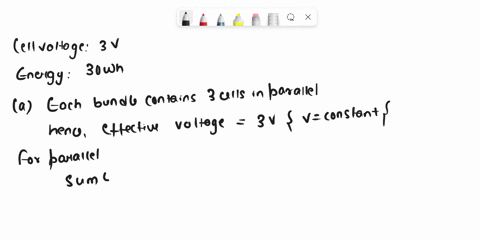

An electric car is equipped with a battery pack that contains 300 cells. Each cell has a voltage of 3 volts and an energy of 30 Wh. The cells are connected in bundles of 3 cells in parallel, and the cell bundles are connected in series. a) Calculate the voltage and energy of each cell bundle. b) Calculate the energy and voltage of the battery pack.
