Interpret the following graphs by answering the questions below. a. The figure below shows the Standing waves How many nodes and antinodes? Typical Diagram of a Standing Wave
Added by John V.
Close
Step 1
However, in a typical standing wave: Show more…
Show all steps
Your feedback will help us improve your experience
Ankur S and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

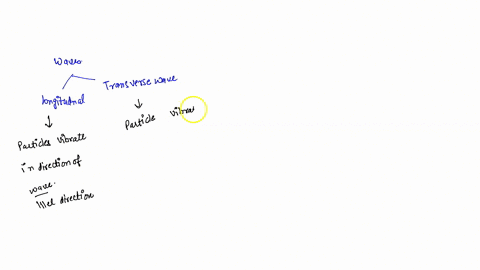

As a transverse wave travels through a medium, the individual particles of the medium move perpendicular to the direction of wave travel parallel to the direction of wave travel in circles in ellipses The diagram below represents a standing wave. What is the number of nodes and antinodes shown in the diagram? (List them separately)
Shyam P.

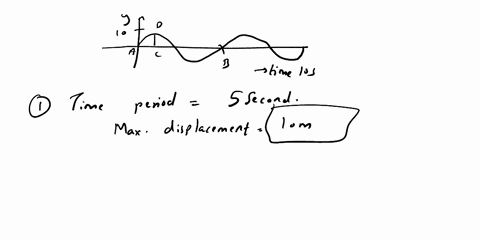

FIGURE 1(a) shows a graph of displacement, y versus time, t and FIGURE 1(b) shows a graph of displacement, y versus distance, x of a progressive wave which move to the left. From the graphs, deduce i) Maximum displacement from its equilibrium position ii) frequency iii) the angular frequency. iv) the wave number. v) the wave propagation velocity. vi) Write a wave equation for the wave.
Adi S.
Draw a diagram to represent the standing-wave pattern for the third harmonic of a rope fixed at both ends. How many antinodes are there?
