10.30. The tire wrench shown in the accompanying figure is used to tighten the bolt on a wheel. Given the information on the diagram, determine the moment about point ( O ) for the two loading situations shown: a. pushing perpendicular to the wrench arm b. pushing at a ( 75^{circ} ) angle. Problem 10.30 Details The figure shows a tire wrench of length 2 feet used to tighten a bolt on the wheel. A force of magnitude 50 pounds is applied on the end of the wrench and is directed downwards. The wrench is pushed down at an angle of 75 degrees.
Added by Tom
Close
Step 1
When the force is applied perpendicular to the wrench arm, the moment about point O is calculated by the formula: Moment = Force x Distance. Here, the force is 50 pounds and the distance (length of the wrench) is 2 feet. So, the moment is 50 pounds x 2 feet = 100 Show more…
Show all steps
Your feedback will help us improve your experience
Timothy James and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

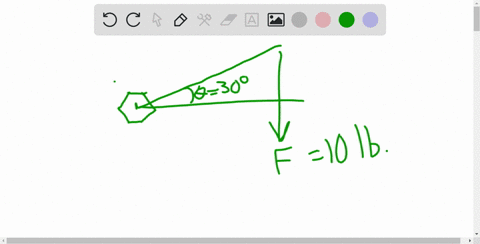

A mechanic uses a 12 -in. wrench to turn a bolt. The wrench makes a $30^{\circ}$ angle with the horizontal. If the mechanic applies a vertical force of 10 lb on the wrench handle, what is the magnitude of the torque at point P (see the following figure)? Express the answer in foot-pounds rounded to two decimal places.
Donald A.

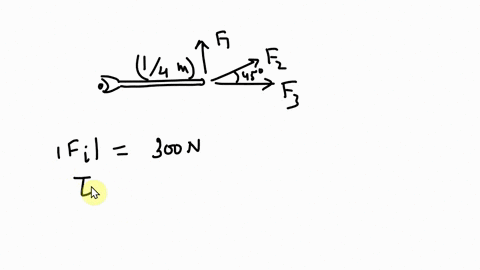

Problem. 11 : The figure below shows a wrench that is being used to turn a nut and three separate forces that could be applied to the end of the wrench. The point P is at the origin of the coordinate system and the point Q is at the end of the wrench at (1/4, 0, 0), where the forces are applied. Find the magnitude of the torque about P due to each of the three forces shown in the figure. Assume that the magnitude of each force is 300 N and the wrench is 1/4 m long. (a) magnitude of torque due to F1 = (b) magnitude of torque due to F2 = (c) magnitude of torque due to F3 =
Chandan S.

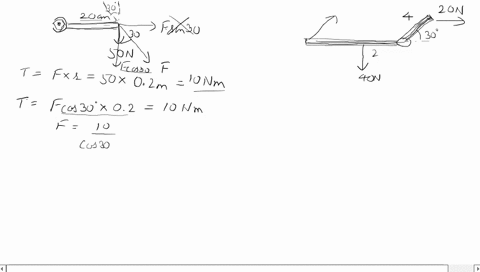

3. Force Applied at an Angle: A 20-cm wrench is used to loosen a bolt. It takes 50 N to loosen the bolt when the force is applied perpendicular to the wrench. How much force would it take if the force was applied at a 30° angle from perpendicular? 4. Determine the Resultant Moment: The center of rotation is at point A. 1. Separately calculate the three moments due to the three forces. 2. Find the resultant moment, which is the sum of the three individual moments.
