00:01

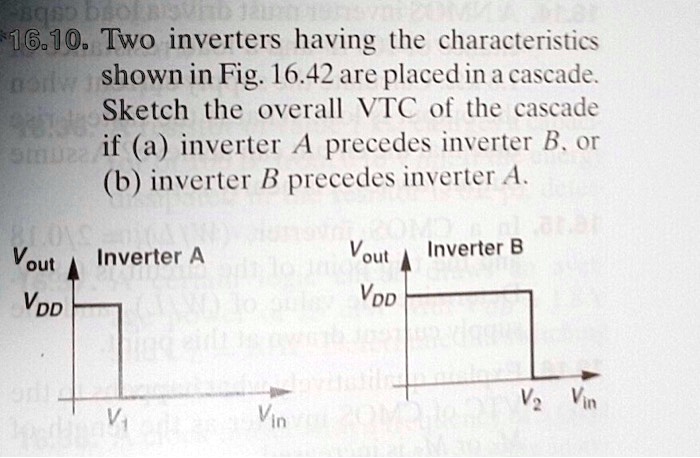

Hello students, in this question we have two inverters, inverter a with the vdd, v1 and this is vin, this is a and the second inverter which is vdd, v2, this is vin, this is given.
00:29
So, we need to cascade these inverters such that if a precedes inverter b, if a precedes b that means that a is first given like this and then this will become the input of the second inverter, right.
00:51
So, what happens is that it will have the voltage will be, so vdd value will be raised by that, okay.
01:17
This will be the input.
01:20
So, this is the a inverter and this is the b inverter.
01:24
So, this will be the vin and this will go to v2, this will be the situation.
01:32
So, this is vdd and if that's this is the first case...
