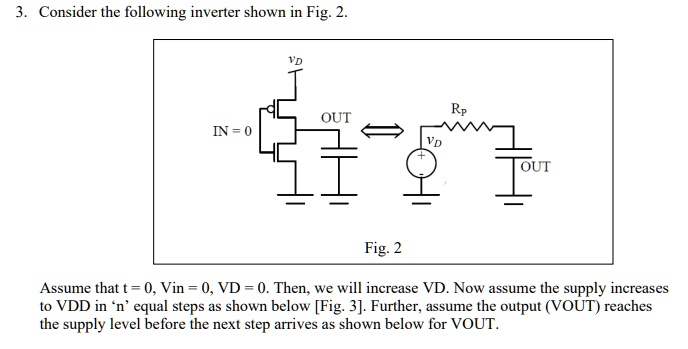

3. Consider the following inverter shown in Fig. 2. VD OUT IN = 0 VD + Rp OUT Fig. 2 Assume that t = 0, Vin = 0, VD = 0. Then, we will increase VD. Now assume the supply increases to VDD in 'n' equal steps as shown below [Fig. 3]. Further, assume the output (VOUT) reaches the supply level before the next step arrives as shown below for VOUT.
Added by Erin P.
Close
Step 1
At \( t = 0 \), \( V_{in} = 0 \), \( V_D = 0 \), and \( V_{OUT} = 0 \). Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 96 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Obtain the expression for the voltage transfer function Vout(jw)/Vin(jw) for the circuit shown in terms of the symbolic components (i.e., do not substitute for the component values). Indicate what happens to the magnitude of the gain (i.e., |Vout(jw)/Vin(jw)|) as the frequency approaches zero and infinity. In the magnitude calculation, substitute for the actual component values. Note that the magnitude of a complex number (a + jb)/(c + jd) is |(a + jb)/(c + jd)| = sqrt(a^2 + b^2)/sqrt(c^2 + d^2).
Adi S.
For the circuit shown below, VG1 provides a DC bias current of 80uA. Find the value of VG2 that gives minimum output voltage. Also, find the voltage gain Vout/Vin. Assume A0 = infinity and lambda = 0.
A CMOS inverter utilizes VDD = 5 V, Vtn = -Vtp = 1 V, and unCox = 50 uA/V^2. Find (W/L)n and (W/L)p so that VM = 2.5 V and so that for vI = VDD, the inverter can sink a current of 0.2 mA with the output voltage not exceeding 0.2 V.
