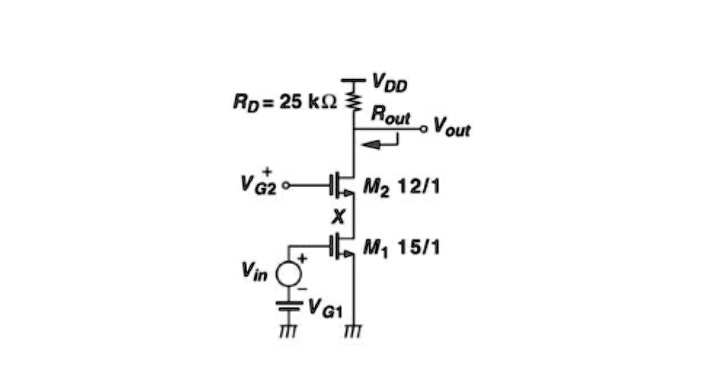

VDD RD = 25 k? Rout Vout VG2 M2 12/1 X M1 15/1 Vin VG1
Added by Nicole S.
Close
Step 1
To find the value of VG2 that gives minimum output voltage, we need to consider the biasing conditions of the circuit. In this case, VG1 provides a DC bias current of 80uA. This means that the drain current of M12 and M15 should be equal to 80uA. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 95 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

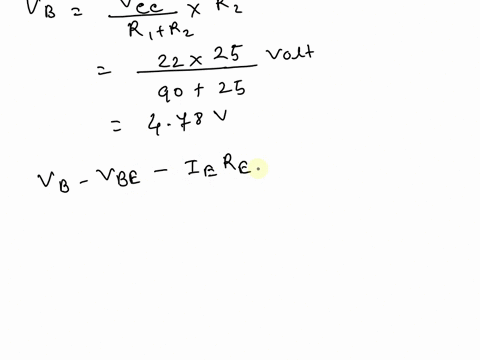

Determine the DC bias voltage Vce and the current Ic for the voltage divider configuration of Fig. 3, with the following parameters: Vcc = +22 V, R1 = 90k̩, R2 = 25k̩, Rc = 6k̩, and Re = 1.2k̩.
