Determine the dc bias voltage VCE and the current IC for the voltage-divider configuration of Fi

Question

Madhur L · Answer

Hello student, here the potential at this point at the base V, the potential VB equals to VCC di

Madhur L · Answer

Hi, in this question we are given with the value of Vcc as 22V and we are given with the value o

Sri K · Answer

So Vcc this is equal to Ib Rb plus Vbe so Ib this is equal to Ic divided by beta this is 2 .5 di

Madhur L · Answer

Hi in this question where it is given that a voltage divider bias where you know IC is equal to

Madhur L · Answer

Hello students, this question is related to CE transistor. Here RB is given as 1 kΩ which is equ

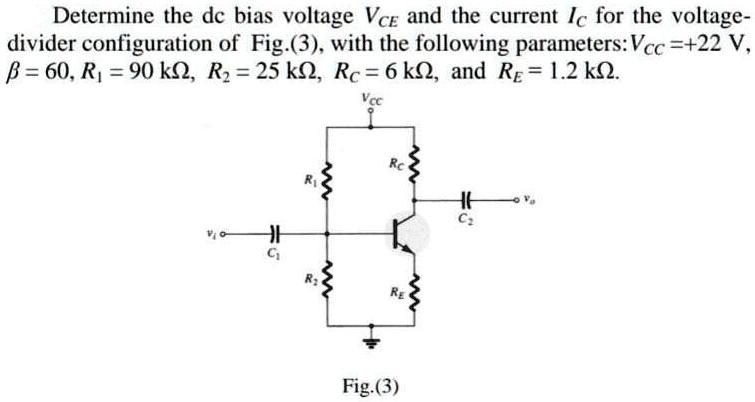

Determine the dc bias voltage VCE and the current IC for the voltage-divider configuration of Fig.(3), with the following parameters: VCC = +22 V, ? = 60, R1 = 90 k?, R2 = 25 k?, RC = 6 k?, and RE = 1.2 k?.
