The parameters of the diode in the circuit below are V? = 0.7 V and rf = 0. The diode's temperature is T = 300 K. Determine vD(t). vi(t) = 0.5 sin(?t) V
Added by Mariano M.
Close
Step 1
5 sin(t) Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

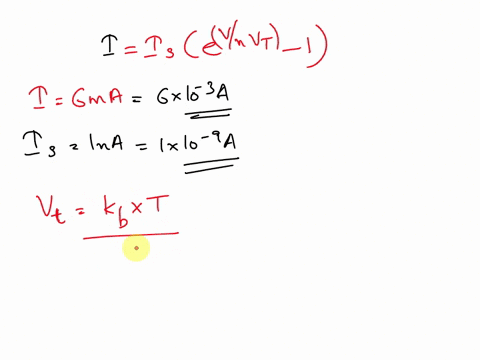

6mA current flows through a Si diode at room temperature (25 degrees Celsius). For this diode, Is equals 1nA and n equals 1. Calculate the voltage applied to the diode. (K = kb = 1.38 * 10^-23 J/K, q = 1.6 * 10^-19 C)
Madhur L.
An $\mathrm{n}^{+} \mathrm{p}$ silicon diode at $T=300 \mathrm{~K}$ has the following parameters: $N_{d}=10^{\mathrm{n} \mathrm{cm}}$ ' $N_{a}=10^{16} \mathrm{~cm}^{-3}, D_{n}=25 \mathrm{~cm}^{2} / \mathrm{s}, D_{p}=10 \mathrm{~cm}^{2} / \mathrm{s}, \tau_{m 0}=\tau_{p 0}=1 \mu \mathrm{s}$, and $A=10^{-4} \mathrm{~cm}^{2}$ Determine the diode current for $(a)$ a forward-bias voltage of $0.5 \mathrm{~V}$ and $(b)$ a reversebiased voltage of $0.5 \mathrm{~V}$.
A diode has IS = 10^(-16) A and n = 1. (a) What is the diode voltage if the diode current is 250 μA at T = 25°C? (b) What is the diode voltage at T = 85°C? Assume the diode voltage temperature coefficient is -2 mV/K at 55°C.
