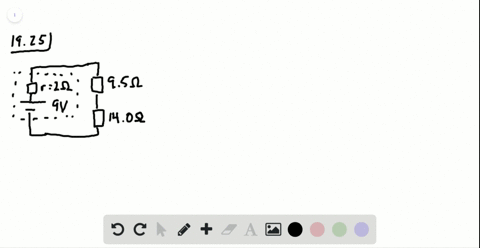

19-3 Kirchhoff's Rules 25. (I) Calculate the current in the circuit of Fig. 19-53, and show that the sum of all the voltage changes around the circuit is zero. r = 2.0 ? 9.0 V 9.5 ? FIGURE 19-53 Problem 25. 14.0 ?

          19-3 Kirchhoff's Rules
25. (I) Calculate the current in the circuit of Fig. 19-53, and
show that the sum of all the
voltage changes around the
circuit is zero.
r = 2.0 ?
9.0 V
9.5 ?
FIGURE 19-53
Problem 25.
14.0 ?

Added by Craig B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sparsha S

07/05/2022

Step 1

- The circuit consists of a 9.0 V battery, a 9.5 Ω resistor, and a 14.09 Ω resistor. - The total resistance in the circuit is the sum of the resistances: R_total = 9.5 Ω + 14.09 Ω = 23.59 Ω. Show more…
