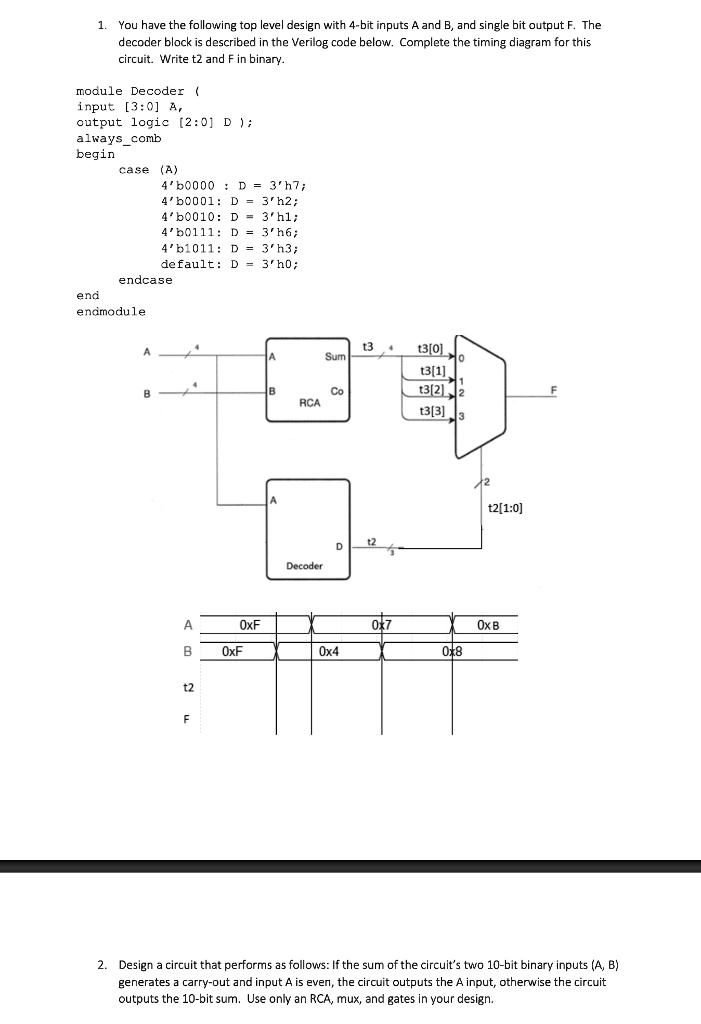

You have the following top-level design with 4-bit inputs A and B, and a single-bit output F. The decoder block is described in the Verilog code below. Complete the timing diagram for this circuit. Write t2 and F in binary.
module Decoder (input [3:0] A, output logic [2:0] D);
always_comb begin
case(A)
4'b0000: D = 3'h7;
4'b0001: D = 3'h2;
4'b0010: D = 3'h1;
4'b0111: D = 3'h6;
4'b1011: D = 3'h3;
default: D = 3'h0;
endcase
end
endmodule
