2. [-/3 Points] DETAILS HRW10 24.P.008. MY NOTES PRACTICE ANOTHER A graph of the x component of the electric field as a function of x in a region of space is shown in the figure below. The scale of the vertical axis is set by $E_{xs} = 50.0$ N/C. The y and z components of the electric field are zero in this region. Suppose that the electric potential at the origin is 18 V. $E_x$ (N/C) $E_{xs}$ 0 $-E_{xs}$ 1 2 3 4 5 6 x (m) (a) What is the electric potential at x = 2.0 m? V (b) What is the greatest positive value of the electric potential for points on the x axis for which $0 \le x \le 6.0$ m? V (c) For what value of x is the electric potential zero? m Submit Answer MY NOTES PRACTICE ANOTHER 3. [-/2 Points] DETAILS HRW10 24.P.011. A nonconducting sphere has radius $R = 2.88$ cm and uniformly distributed charge $q = +4.50$ fC. Take the electric potential at the sphere's center to be $V_0 = 0$. (a) What is V at radial distance $r = 1.45$ cm? V (b) What is V at radial distance $r = R$? V

          2. [-/3 Points]
DETAILS
HRW10 24.P.008.
MY NOTES
PRACTICE ANOTHER
A graph of the x component of the electric field as a function of x in a region of space is shown in the figure below. The scale of the vertical axis is set by $E_{xs} = 50.0$ N/C. The y and z components of
the electric field are zero in this region. Suppose that the electric potential at the origin is 18 V.
$E_x$ (N/C)
$E_{xs}$
0
$-E_{xs}$
1 2 3 4 5 6
x (m)
(a) What is the electric potential at x = 2.0 m?
V
(b) What is the greatest positive value of the electric potential for points on the x axis for which $0 \le x \le 6.0$ m?
V
(c) For what value of x is the electric potential zero?
m
Submit Answer
MY NOTES
PRACTICE ANOTHER
3. [-/2 Points]
DETAILS
HRW10 24.P.011.
A nonconducting sphere has radius $R = 2.88$ cm and uniformly distributed charge $q = +4.50$ fC. Take the electric potential at the sphere's center to be $V_0 = 0$.
(a) What is V at radial distance $r = 1.45$ cm?
V
(b) What is V at radial distance $r = R$?
V
Show more…
2. [-/3 Points] DETAILS HRW10 24.P.008. MY NOTES PRACTICE ANOTHER A graph of the x component of the electric field as a function of x in a region of space is shown in the figure below. The scale of the vertical axis is set by Exs = 50.0 N/C. The y and z components of the electric field are zero in this region. Suppose that the electric potential at the origin is 18 V. Ex (N/C) Exs 0 -Exs 1 2 3 4 5 6 x (m) (a) What is the electric potential at x = 2.0 m? V (b) What is the greatest positive value of the electric potential for points on the x axis for which 0 ≤ x ≤ 6.0 m? V (c) For what value of x is the electric potential zero? m Submit Answer MY NOTES PRACTICE ANOTHER 3. [-/2 Points] DETAILS HRW10 24.P.011. A nonconducting sphere has radius R = 2.88 cm and uniformly distributed charge q = +4.50 fC. Take the electric potential at the sphere's center to be V0 = 0. (a) What is V at radial distance r = 1.45 cm? V (b) What is V at radial distance r = R? V

Added by Alicia L.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
HRW10 24.P.008. MY NOTES PRACTICE ANOTHER A graph of the x component of the electric field as a function of x in a region of space is shown in the figure below. The scale of the vertical axis is set by Exs = 50.0 N/C. The y and z components of the electric field are zero in this region. Suppose that the electric potential at the origin is 18 V. E, (N/C) x (m) (a) What is the electric potential at x = 2.0 m? (b) What is the greatest positive value of the electric potential for points on the x axis for which 0 ≤ x ≤ 6.0 m? (c) For what value of x is the electric potential zero? Submit Answer HRW10 24.P.011. MY NOTES PRACTICE ANOTHER A nonconducting sphere has radius R = 2.88 cm and uniformly distributed charge q = +4.50 fC. Take the electric potential at the sphere's center to be Vc = 0. (a) What is V at radial distance r = 1.45 cm? (b) What is V at radial distance r = R?
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov Kathleen Carty
David Collins verified

Shital Rijal and 52 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
iii-a-thin-ring-shaped-object-of-radius-a-contains-a-total-charge-q-uniformly-distributed-over-its-l

(III) A thin ring-shaped object of radius $a$ contains a total charge $Q$ uniformly distributed over its length. The electric field at a point on its axis a distance $x$ from its center is given in Example 9 of "Electric Charge and Electric Field" as $E = \frac { 1 } { 4 \pi \epsilon _ { 0 } } \frac { Q x } { \left( x ^ { 2 } + a ^ { 2 } \right) ^ { \frac { 3 } { 2 } } }$ (a) Take the derivative to find where on the $x$ axis $( x > 0 ) E _ { x }$ is a maximum. Assume $Q = 6.00 \mu \mathrm { C }$ and $a = 10.0 \mathrm { cm } .$ (b) Calculate the electric field for $x = 0$ to $x = + 12.0 \mathrm { cmin }$ steps of $0.1 \mathrm { cm } ,$ and make a graph of the electric field. Does the maximum of the graph coincide with the maximum of the electric field you obtained analytically? Also, calculate and graph the electric field $( c )$ due to the ring, and $( d )$ due to a point charge $Q = 6.00 \mu C$ at the center of the ring. Make a single graph, from $x = 0$ (or $x = 1.0 \mathrm { cm }$ ) out to $x = 50.0 \mathrm { cm }$ in 1.0$\mathrm { cm }$ steps, with two curves of the electric fields, and show that both fields converge at large distances from the center. (e) At what distance does the electric field of the ring differ from that of the point charge by 10$\% ?$

Physics for Scientists and Engineers with Modern Physics

iii-a-thin-ring-shaped-object-of-radius-a-contains-a-total-charge-q-uniformly-distributed-over-its-2

(III) A thin ring-shaped object of radius $a$ contains a total charge $Q$ uniformly distributed over its length. The electric field at a point on its axis a distance $x$ from its center is given in Example $21-9$ as $$ E=\frac{1}{4 \pi \epsilon_{0}} \frac{Q x}{\left(x^{2}+a^{2}\right)^{\frac{3}{2}}} $$ (a) Take the derivative to find where on the $x$ axis $(x>0) E_{x}$ is a maximum. Assume $Q=6.00 \mu \mathrm{C}$ and $a=10.0 \mathrm{~cm}$. (b) Calculate the electric field for $x=0$ to $x=+12.0 \mathrm{~cm}$ in steps of $0.1 \mathrm{~cm}$, and make a graph of the electric field. Does the maximum of the graph coincide with the maximum of the electric field you obtained analytically? Also, calculate and graph the electric field $(c)$ due to the ring, and $(d)$ due to a point charge $Q=6.00 \mu \mathrm{C}$ at the center of the ring. Make a single graph, from $x=0 \quad($ or $x=1.0 \mathrm{~cm})$ out to $x=50.0 \mathrm{~cm}$ in $1.0 \mathrm{~cm}$ steps, with two curves of the electric fields, and show that both fields converge at large distances from the center. (e) At what distance does the electric field of the ring differ from that of the point charge by $10 \% ?$

Physics for Scientists and Engineers with Modern Physics

7-5-points-two-60-uc-charges-are-placed-at-two-ofthe-vertices-of-an-equilateral-triangle-having-sides-20-m-long-what-is-the-electric-potential-at-the-third-vertex-relative-to-infinity-due-to-32914

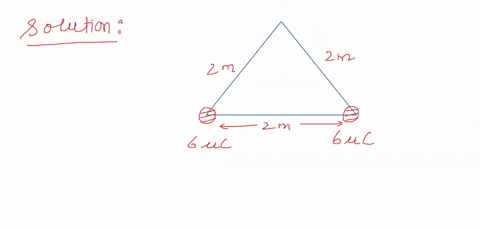

7) 5 points Two +6.0-ΑC charges are placed at two of the vertices of an equilateral triangle having sides 2.0 m long. What is the electric potential at the third vertex, relative to infinity, due to these charges? (k = 1/4πε0 = 9.0 × 10^9 N · m^2/C^2) Show your work. A) 54 kV B) 108 V C) 0 V D) 90 kV E) 27 kV 8) 10 points Two point charges of +2.00 ΑC and +4.00 ΑC are at the origin and at the point x = 0.000 m, y = -0.300 m, as shown in the figure. What is the electric potential due to these charges, relative to infinity, at the point P at x = 0.400 m on the x-axis? (k = 1/4πε0 = 8.99 × 10^9 N · m^2/C^2). Show your work. A) 117 kV B) 15.7 kV C) 11.7 kV D) 56.0 kV E) 36.0 kV

Deepanshu K.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,442 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,363 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,225 solutions
*

Transcript

-
00:02 Alright, so we have been given that the electric field e is equal to let me call that k, 1 by 4 by epsilon equals to k and qx upon x squared plus a squared power 3 by 2.

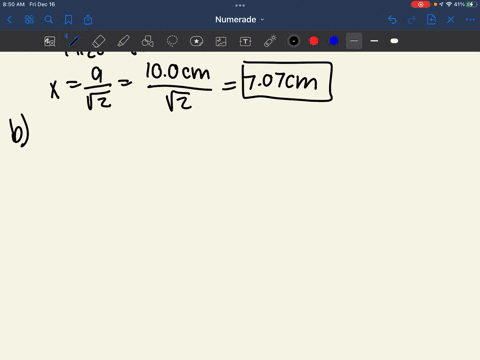

00:23 Now to find the maximum value of e, we need to differentiate this e with respect to x to find out the position where he will be maximum so this and equate this to zero right so this implies kq times one upon x squared plus a square by two minus three x by two two x upon x squared plus a squared 5 by 2 using the product rule for differentiation okay kk goes to the other side and become 0 similarly we can take 1 upon x squared plus a square power 3 by 2 common so 1 will be on the left side left term and on the right term will be a 3x squared upon x squared plus a square and this is now equal to 0 now solving for x gives me x is equal to plus minus a upon root 2 and with the question that says a is equal to 10 centimeters that is 0 .1 meter this gives me x is equal to plus minus 7 .07 c and plus and minus denotes the two sides of the ring where the electric field will be 0 okay so now let's move on to part v so in part this is part a.
