Question

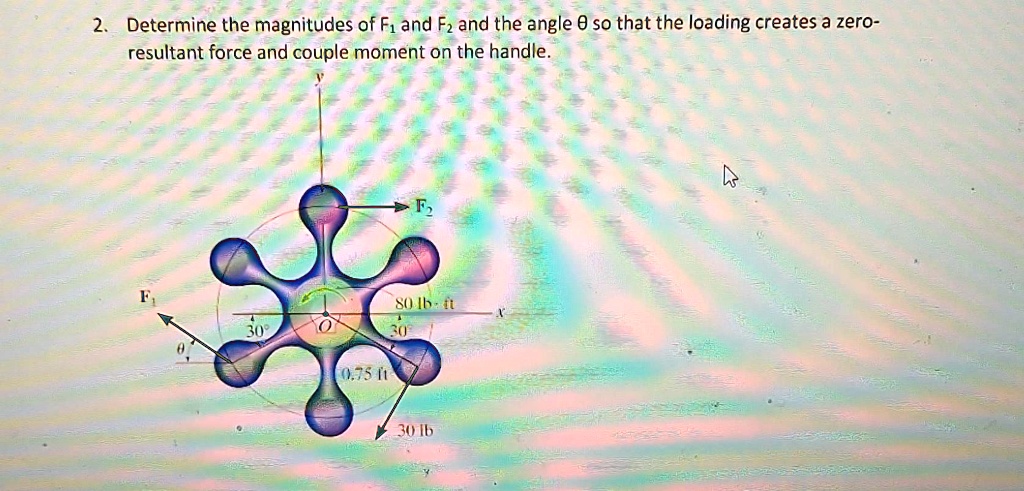

2. Determine the magnitudes of $F_1$ and $F_2$ and the angle $\theta$ so that the loading creates a zero- resultant force and couple moment on the handle.

          2. Determine the magnitudes of $F_1$ and $F_2$ and the angle $\theta$ so that the loading creates a zero-
resultant force and couple moment on the handle.

2. Determine the magnitudes of F1 and F2 and the angle θ so that the loading creates a zero-
resultant force and couple moment on the handle.

Added by Christopher P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Donald Albin

07/27/2020

Step 1

We have three forces: $F_1$, $F_2$, and a 30 lb force. The 80 lb·ft couple moment is also acting on the handle. For the resultant force to be zero, the vector sum of the forces must be zero. For the resultant couple moment to be zero, the sum of the moments Show more…

Show all steps

Thanks for your feedback!

2. Determine the magnitudes of $F_1$ and $F_2$ and the angle $\theta$ so that the loading creates a zero-resultant force and couple moment on the handle. 30 0.75 ft $F_1$ 80 lb·ft 30 30 lb x
