2. Fill in the table. \begin{tabular}{|l|l|l|} \hline \multicolumn{1}{|c|}{ Cycle stroke } & Movement of the piston & \begin{tabular}{l} What happened to \\ mixture of gases? \end{tabular} \\ \hline Intake & & \\ \hline Compression & & \\ \hline Power & & \\ \hline Exhaust & & \\ \hline \end{tabular} Guide Questions: Q 17. What happens to the gas if it is heated inside the engine's cylinder? Q 18. What happens to the piston and the gases during compression stroke? Q 19. What is the function of the spark plug? What is its effect to the mixture's temperature? Q 20. Describe the piston and the gases during power stroke. Q 21. In exhaust stroke, what happens to the piston and the mixture of gases? Q 22. What do you think is the effect of this exhaust gas to the environment? Q 23. Can we consider heat engine \( 100 \% \) efficient? Why? Why not? Q 24. As a student, how can you help minimize the effects of thermal pollution?
Added by John M.
Close
Step 1
This allows the mixture of fuel and air to enter the cylinder. Compression: During the compression stroke, the piston moves upward, compressing the fuel-air mixture. This increases the pressure and temperature of the gases. Power: During the power stroke, the Show more…
Show all steps
Your feedback will help us improve your experience
Eric Mockensturm and 98 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

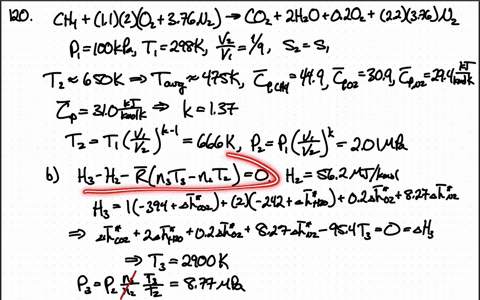

Consider one cylinder of a spark-ignition, internalcombustion engine. Before the compression stroke, the cylinder is filled with a mixture of air and methane. Assume that $110 \%$ theoretical air has been used and that the state before compression is $100 \mathrm{kPa}, 25^{\circ} \mathrm{C}$. The compression ratio of the engine is 9 to 1.a. Determine the pressure and temperature after compression, assuming a reversible adiabatic process. b. Assume that complete combustion takes place while the piston is at top dead center (at minimum volume) in an adiabatic process. Determine the temperature and pressure after combustion, and the increase in entropy during the combustion process. c. What is the irreversibility for this process?
A four-cylinder, four-stroke, spark-ignition engine operates on the ideal Otto cycle with a compression ratio of 11 and a total displacement volume of $1.8 \mathrm{~L}$. The air is at $90 \mathrm{kPa}$ and $50^{\circ} \mathrm{C}$ at the beginning of the compression process. The heat input is $0.5 \mathrm{~kJ}$ per cycle per cylinder. Determine (a) the maximum temperature and pressure that occur during the cycle, $(b)$ the net work per cycle per cylinder and the thermal efficiency of the cycle, (c) the mean effective pressure, and ( $d$ ) the power output for an engine speed of 3000 rpm. Use constant specific heats with $c_{v}=0.821 \mathrm{~kJ} / \mathrm{kg} \cdot \mathrm{K}, c_{p}=1.108 \mathrm{~kJ} /$ $\mathrm{kg} \cdot \mathrm{K},$ and $k=1.35 .$
During the power stroke in a four-stroke automobile engine, the piston is forced down as the mixture of combustion products and air undergoes an adiabatic expansion. Assume (1) the engine is running at 2500 cycles/min; (2) the gauge pressure immediately before the expansion is $20.0 \mathrm{atm} ;$ (3) the volumes of the mixture immediately before and after the expansion are $50.0 \mathrm{cm}^{3}$ and $400 \mathrm{cm}^{3}$, respectively (Fig. P17.54) (4) the time interval for the expansion is one-fourth that of the total cycle; and (5) the mixture behaves like an ideal gas with specific heat ratio $1.40 .$ Find the average power generated during the power stroke.
