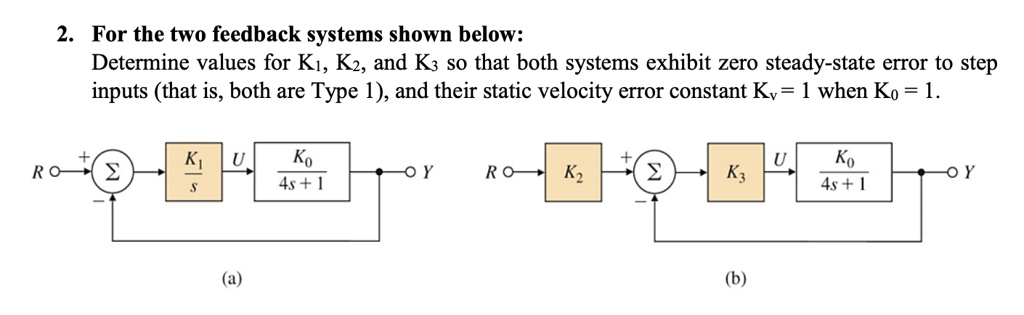

2. For the two feedback systems shown below: Determine values for K1, K2, and K3 so that both systems exhibit zero steady-state error to step inputs (that is, both are Type 1), and their static velocity error constant Kv = 1 when K0 = 1.

          2. For the two feedback systems shown below:
Determine values for K1, K2, and K3 so that both systems exhibit zero steady-state error to step
inputs (that is, both are Type 1), and their static velocity error constant Kv = 1 when K0 = 1.

2. For the two feedback systems shown below:
Determine values for K1, K2, and K3 so that both systems exhibit zero steady-state error to step
inputs (that is, both are Type 1), and their static velocity error constant Kv = 1 when K0 = 1.

Added by James W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sufiyan Alam

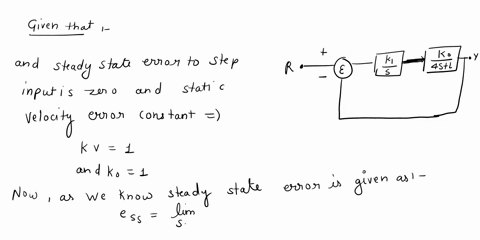

Step 1

For system (a), the transfer function is given by: G(s) = KI / (4s + 1) For system (b), the transfer function is given by: G(s) = K2 K3 / (4s + 1) To achieve zero steady-state error to step inputs, both systems need to be Type 1. This means that the transfer Show more…
