22. A series RLC circuit is driven by a 1.0-kHz oscillator. The circuit parameters are Vrms = 12

Question

Varsha Aggarwal · Accepted Answer

Step 1: Calculate the angular frequency (ω) using the formula ω = 2πf, where f is the frequency

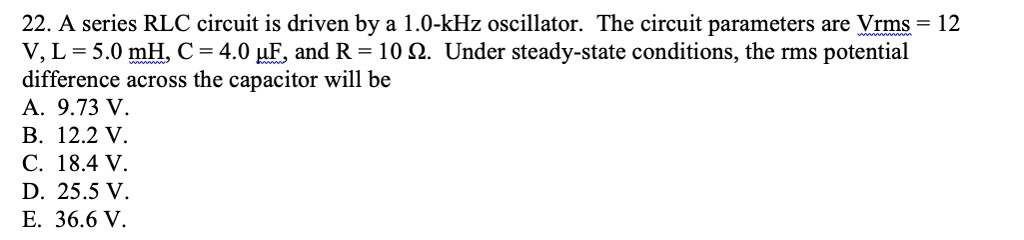

22. A series RLC circuit is driven by a 1.0-kHz oscillator. The circuit parameters are Vrms = 12 V, L = 5.0 mH, C = 4.0 ?F, and R = 10 ?. Under steady-state conditions, the rms potential difference across the capacitor will be A. 9.73 V. B. 12.2 V. C. 18.4 V. D. 25.5 V. E. 36.6 V.
