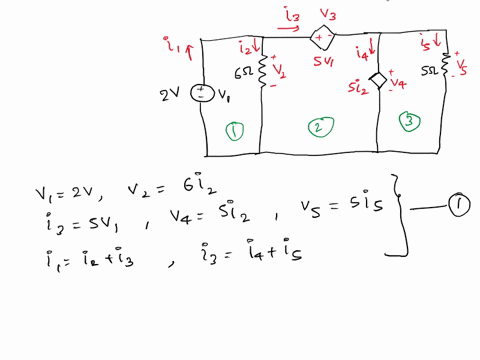

23. (a) Determine a numerical value for each current and voltage ($i_1$, $v_1$, etc.) in the circuit of Fig. 3.63. (b) Calculate the power absorbed by each element and verify that they sum to zero.

          23. (a) Determine a numerical value for each current and voltage ($i_1$, $v_1$, etc.) in
the circuit of Fig. 3.63. (b) Calculate the power absorbed by each element and
verify that they sum to zero.

Added by Miranda H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Rajesh Kumar

Step 1

Determine the current i: From Ohm's Law, we know that V = IR, where V is the voltage and R is the resistance. In this case, the voltage across the 10 Ω resistor is 20 V, so we can calculate the current i as follows: i = V / R = 20 V / 10 Ω = 2 A Show more…

Show all steps

Thanks for your feedback!

Determine a numerical value for each current and voltage i, etc. in the circuit of Fig. 3.63. Calculate the power absorbed by each element and verify that they sum to zero.
