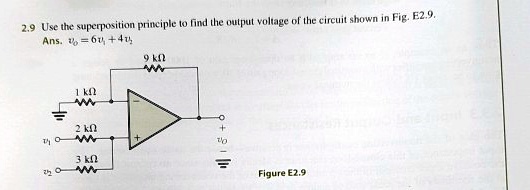

2.9 Use the superposition principle to find the output voltage of the circuit shown in Fig. E2.9. Ans. $v_o = 6v_1 + 4v_2$
Added by John T.
Close
Step 1
The output voltage is 6+4 9k W, Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 82 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Use the superposition principle to find the output voltage of the circuit shown in Fig. E2.9. Ans. v_o = 6v_1 + 4v_2
Madhur L.
2.9 Use the superposition principle to find the output voltage of the circuit shown in Fig. E2.9. Ans. vo = 6v1 + 4v2
Supreeta N.
Find I in the circuit of Fig. 4.14 using the superposition principle. 6 ̩̐, 2 ̩̐, 8 ̩̐ 16 V 4 A 12 V Figure 4.14 For Practice Prob. 4.5.
Sri K.
