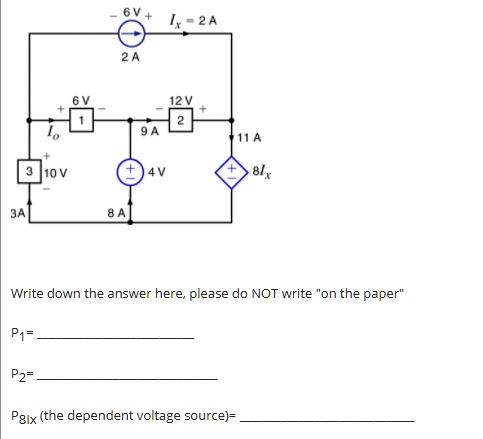

6V+ 2 A Ix = 2 A X + 6 V 1 -12 V + 2 10 9 A 11 A + 3 10 V +4V +8Ix 3A 8 A Write down the answer here, please do NOT write "on the paper" P1= P2= P8Ix (the dependent voltage source)=
Added by Timothy B.
Close
Step 1
The power (P) is calculated by multiplying the voltage (V) by the current (I). So, for the 2A current source: P1 = 2A * 12V = 24W Show more…
Show all steps
Your feedback will help us improve your experience
David Morabito and 78 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In a series-parallel circuit, if the power source is 120V, IT= 24A I2= 6A V3= 40V, R1= ? (series), R2= ? (parallel), R3= ? (parallel), the value of the applied voltage source would be: A) 40V B) 28V C) 36V D) 120V
Ankur S.
Calculate the Voltage Va for the following circuit. (points 50)
Morgan C.
In the diagram above, the voltage difference between A and B is 6V. If R1 = 250, R3 = 450, and I = 0.095A, then find R2.
Madhur L.
