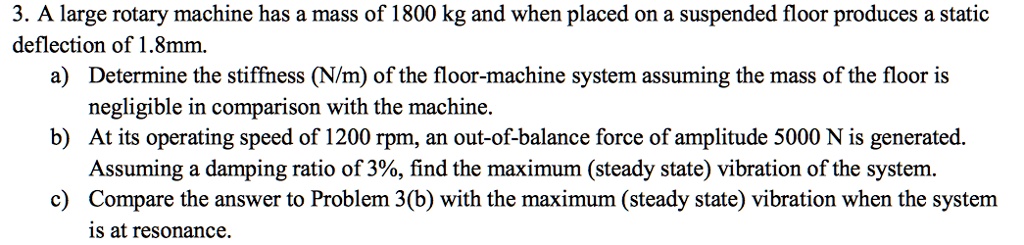

3. A large rotary machine has a mass of 1800 kg and when placed on a suspended floor produces a static deflection of 1.8mm. a) Determine the stiffness (N/m) of the floor-machine system assuming the mass of the floor is negligible in comparison with the machine. b) At its operating speed of 1200 rpm, an out-of-balance force of amplitude 5000 N is generated. Assuming a damping ratio of 3%, find the maximum (steady state) vibration of the system. c) Compare the answer to Problem 3(b) with the maximum (steady state) vibration when the system is at resonance.
Added by Meredith P.
Close
Step 1
In this case, the static deflection of 1.8 mm can be considered as the displacement caused by the machine's weight. The formula for stiffness is given by: Stiffness (k) = Force (F) / Displacement (x) Since the machine's weight is acting downwards, the force can Show more…
Show all steps
