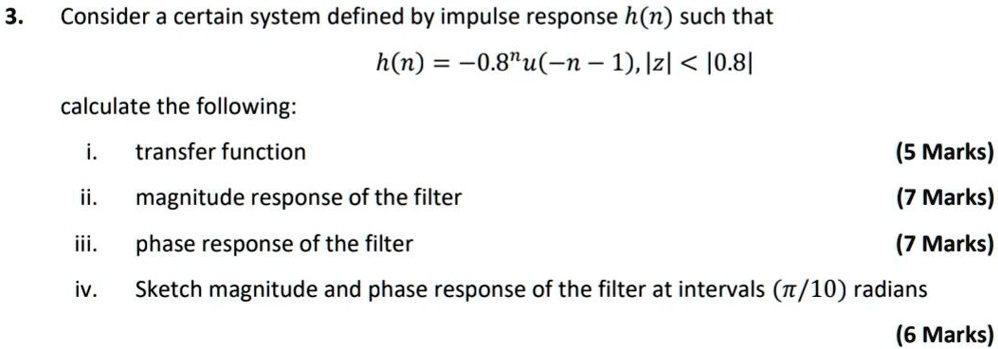

3. Consider a certain system defined by impulse response h(n) such that h(n) = -0.8^n u(-n - 1), |z| < |0.8| calculate the following: i. transfer function ii. magnitude response of the filter iii. phase response of the filter iv. Sketch magnitude and phase response of the filter at intervals (?/10) radians
Added by Gabrielle C.
Close
Step 1
Transfer function: The transfer function H(z) is the Z-transform of the impulse response h(n). Given h(n) = -0.8^n * u(-n - 1), we can find the Z-transform: H(z) = Z{-0.8^n * u(-n - 1)} = -\sum_{n=-\infty}^{-1} (0.8)^n z^{-n} Now, we can rewrite the sum Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 72 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider a discrete-time, linear, time-invariant system with impulse response h[n] = sin(pi/3 * n) / (pi * n) (a) Determine the frequency response, H(e^jw), of the system. (b) Sketch the magnitude response, |H(e^jw)|. Provide sufficient details in your sketch to convey the pattern. (c) What type of filter is this system—high-pass, low-pass, or band-pass? (d) Determine the output of the system in response to the signal x[n] = 1/2 + 3 cos(2pi/7 * n) - 5 sin(pi/2 * n)
Sri K.
For each of the linear, shift-invariant systems described by the impulse response, determine the frequency response function H(e^{jΐ}). Plot the magnitude response |H(e^{jΐ})| and the phase response ∠H(e^{jΐ}) over the interval [-π, π]. 1. h(n) = (0.9)^{|n|} 2. h(n) = sinc(0.2n)[u(n + 20) - u(n - 20)], where sinc(0) = 1 3. h(n) = sinc(0.2n)[u(n) - u(n - 40)] 4. h(n) = [(0.5)^n + (0.4)^n]u(n) 5. h(n) = (0.5)^{|n|} cos(0.1πn)
Adi S.
Determine the impulse response h n( ) of a high-pass linear phase FIR filter of length M = 4 which has an anti-symmetric unit sample response. The gain of the filter at a frequency of 125 Hz is 0.5 while at 375 Hz its gain is 1. Assume that the sampling frequency is 1 KHz.
