3. Derive the mathematical models for $x_1(t)$ and $x_2(t)$ in the 2DOF system shown. Determine the system transfer functions for $m_1 = m_2 = 10$ kg, $c_1 = 20$ Ns/m, $c_2 = 30$ Ns/m, $k_1 = 10$ N/m, and $k_2 = 40$ N/m.
Added by Lisa T.
Close
Step 1
Let $x_1(t)$ be the displacement of mass $m_1$ and $x_2(t)$ be the displacement of mass $m_2$. For mass $m_1$: The forces acting on $m_1$ are: - Spring force from $k_1$: $-k_1 x_1$ - Damping force from $c_1$: $-c_1 \dot{x}_1$ - Spring force from $k_2$: $k_2 (x_2 Show more…
Show all steps
Your feedback will help us improve your experience
Lien Le and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

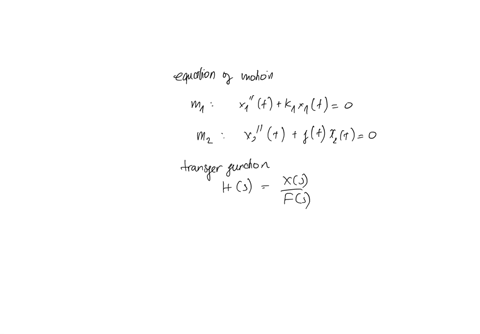

For the mechanical system shown below, do the following: (a) Write down the equations of motion that describe the system. (b) Find the transfer function of the system, defined as H(s) = X(s)/F(s), where X(s) = X1(s) + X2(s) and F(s) = F1(s) + F2(s). (c) Use Cramer's Rule to solve for X2(s) in terms of the applied forces F1(s) and F2(s).
Lien L.
The model of the mechanical system in Figure A.4 (no friction, no damping) is governed by the equations: m1y1'' = -k1y1 + k2(y2 - y1) m2y2'' = -k2(y2 - y1) - k3y2 Given: m1 = m2 = 10 kg k1 = k3 = 20 kg/sec^2 k2 = 40 kg/sec^2 Find the solution satisfying the initial conditions: y1(0) = y2(0) = 0 y1'(0) = 1 m/sec y2'(0) = -1 m/sec.
Sri K.
3. (20 pts) Write the differential equations of motion, convert to Laplace domain with zero initial conditions. Use: k1 = k2 = 2, m1 = m2 = 1, c = 1. a) Find the transfer function indicated b) Use a) to write ODE for x2(t) vs y(t)
Adi S.
