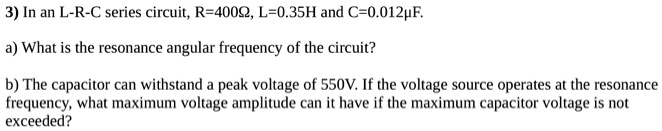

3) In an L-R-C series circuit, R=400?, L=0.35H and C=0.012?F. a) What is the resonance angular frequency of the circuit? b) The capacitor can withstand a peak voltage of 550V. If the voltage source operates at the resonance frequency, what maximum voltage amplitude can it have if the maximum capacitor voltage is not exceeded?
Added by Jeremy W.
Close
Step 1
Given: R = 400Ω L = 0.35H C = 0.012μF Resonance frequency, f = 1 / (2π√(LC)) f = 1 / (2π√(0.35 * 0.012 * 10^-6)) f = 57.059 Hz Angular resonance frequency, ω = 2πf ω = 2π * 57.059 ω ≈ 358.33 rad/s Show more…
Show all steps
