3 resistors of resistance 5, 10 and 15 ohm are connected in series to 2 resistors with resistance 2 and 4 ohm in parallel. What is the equivalent resistance resistance in the circuit?
Added by Narayan S.
Step 1
Step 1: Calculate the equivalent resistance for the resistors connected in series: Total resistance = 5 ohm + 10 ohm + 15 ohm Total resistance = 30 ohm Show more…
Show all steps
Your feedback will help us improve your experience
Suman Saurav Thakur and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Salamat A.

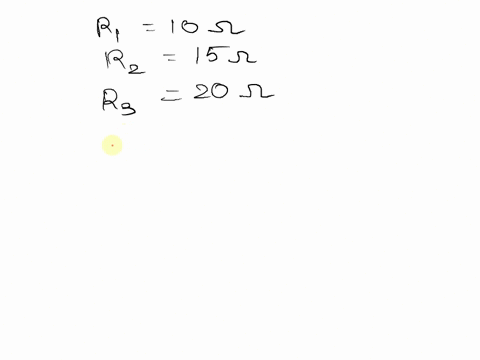

three resistor 10, 15 and 20 ohms each are connected in parallel. What is the equivalent resistance?
Madhur L.
If we have 3 resistors in a series, with resistor 1 having a resistance of 5Ω, resistor 2 having a resistance of 10Ω, and resistor 3 having a resistance of 15Ω, what is the equivalent resistance of the series?
