3 V 4 V -1 A 5Ω 4Ω 2Ω Find the SAE's for the given loop assignment and the power (in Watts) absorbed by the 4 Ohm resistor.
Added by Olivia W.
Close
Step 1
Loop 1: $I_1 = -1 A$ Loop 2: We need to find $I_2$. Loop 3: $I_3 = -1 A$ Show more…
Show all steps
Your feedback will help us improve your experience
Sam Stansfield and 92 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

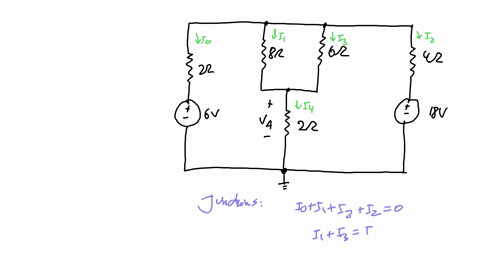

19. The power dissipated in the 6̦ resistor (in W) is 20. The power dissipated in the 4̦ resistor (in W) is
Sam S.
Determine the average power absorbed by the 4-Ω resistor in the network shown in Fig. P9.26. 2 Ω 12∠0° V -j4 Ω j2 Ω 2∠0° A 4 Ω
Adi S.

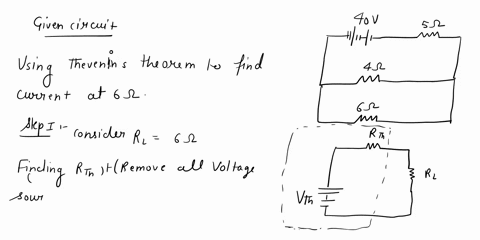

Use Thevenin's theorem to find the current flowing in the 6-ohm resistor shown below and the power dissipated in the 4-ohm resistor. [2.162 A, 42.07 W]
