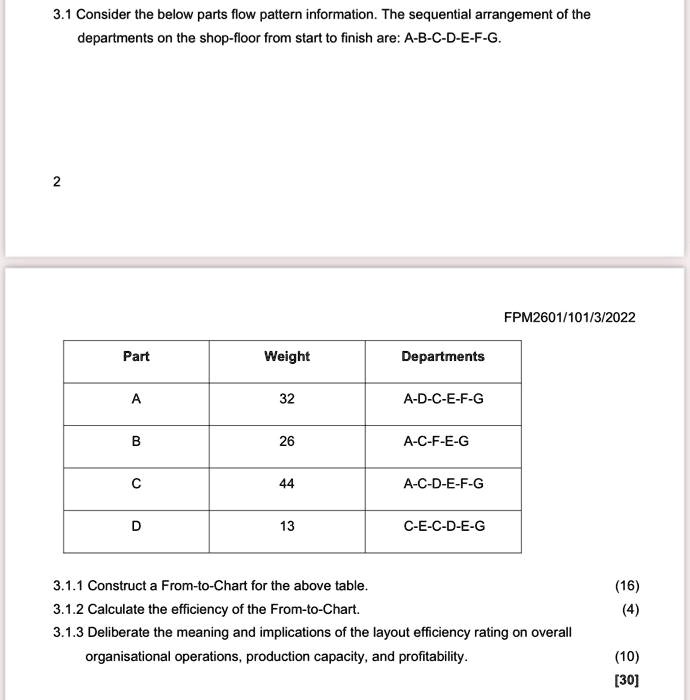

3.1 Consider the below parts flow pattern information. The sequential arrangement of the departments on the shop-floor from start to finish are: A-B-C-D-E-F-G. 2 Part A B C D Weight 32 26 44 13 Departments A-D-C-E-F-G A-C-F-E-G A-C-D-E-F-G C-E-C-D-E-G FPM2601/101/3/2022 3.1.1 Construct a From-to-Chart for the above table. 3.1.2 Calculate the efficiency of the From-to-Chart. 3.1.3 Deliberate the meaning and implications of the layout efficiency rating on overall organisational operations, production capacity, and profitability. (16) (4) (10) [30]
3.1 Consider the below parts flow pattern information.The seguential arrangement of the
departments on the shop-floor from start to finish are:A-B-C-D-E-F-G
2
FPM2601/101/3/2022
Part
Weight
Departments
A
32
A-D-C-E-F-G
B
26
A-C-F-E-G
C
44
A-C-D-E-F-G
D
13
C-E-C-D-E-G
3.1.1 Construct a From-to-Chart for the above table
(16) (4)
3.1.2 Calculate the efficiency of the From-to-Chart.
3.1.3 Deliberate the meaning and implications of the layout efficiency rating on overall
organisational operations, production capacity, and profitability.
(10) [30]
