3A 1Ω 5 Ω a 3 Ω + Vth b (a) Find the Thévenin-equivalent circuit between terminals a and b.
Added by Amy S.
Close
Step 1
Step 1: To find the Thevenin equivalent circuit, we need to find the Thevenin voltage ($V_{th}$) and the Thevenin resistance ($R_{th}$). Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 53 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Narayan H.

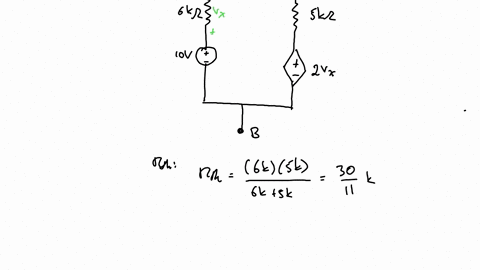

Given a = 10, b = 6, c = 5, d = 2 and e = 3, in the figure below where the 3 kΩ resistor is the load, use Thevenin theorem to calculate:
Sam S.

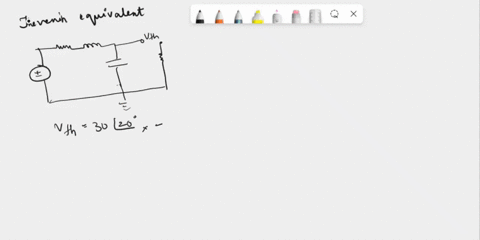

Find the Thevenin equivalent at terminals a-b of the circuit in Fig. 10.24. 30/20 V -j4 ̐ 10 ̐ Figure 10.24 For Practice Prob. 10.8. Answer: ZTh = 12.4 - j3.2 ̐, VTh = 18.97 /-51.57° V.
