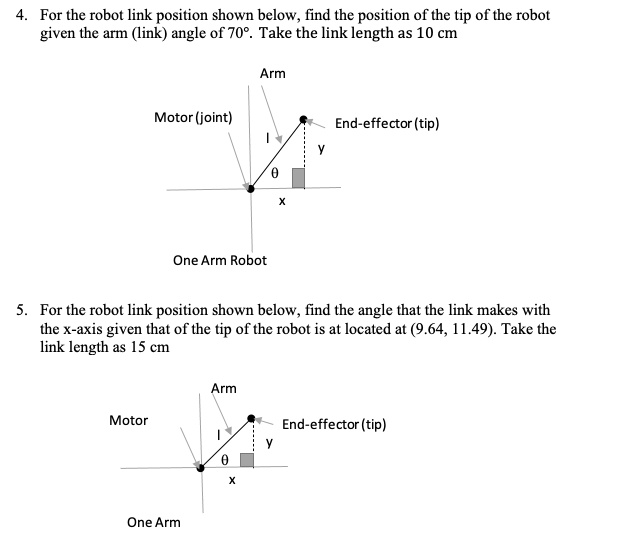

4. For the robot link position shown below, find the position of the tip of the robot given the arm (link) angle of 70°. Take the link length as 10 cm Arm Motor (joint) l End-effector (tip) y ? x One Arm Robot 5. For the robot link position shown below, find the angle that the link makes with the x-axis given that of the tip of the robot is at located at (9.64, 11.49). Take the link length as 15 cm Arm Motor l End-effector (tip) y ? x One Arm
Added by Ruben S.
Close
Step 1
Find the arm angle. Arm angle = 70 degrees Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 57 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

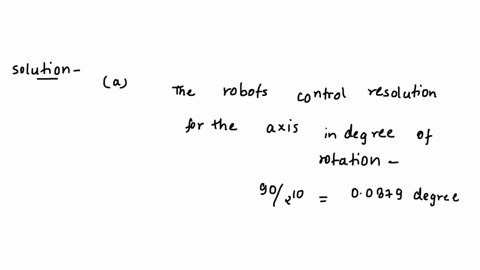

The telescoping arm of a certain robot obtains its vertical motion by rotating (R) about a horizontal axis. The total range of the rotation is 90
Sri K.
Adi S.
3-14. Consider the one-link planar robot shown in Figure P3.14. If l = 5 cm, sketch the position of the tip of the robot and determine the (x,y) coordinates of position P for (a) θ = 45° (b) θ = 0° (c) θ = -135° (d) θ = -90° 3-15. Repeat problem P3-14 if l = 10 in and (a) θ = 150° (b) θ = 270° (c) θ = 420° (d) θ = 90°
