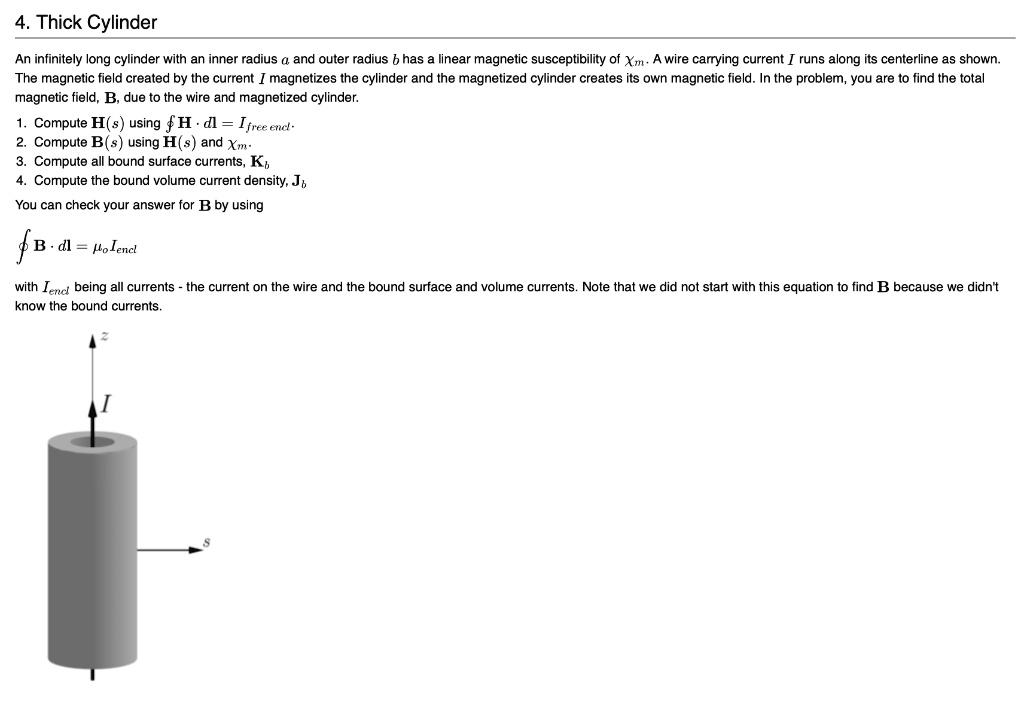

4. Thick Cylinder An infinitely long cylinder with an inner radius $a$ and outer radius $b$ has a linear magnetic susceptibility of $chi_m$. A wire carrying current $I$ runs along its centerline as shown. The magnetic field created by the current $I$ magnetizes the cylinder and the magnetized cylinder creates its own magnetic field. In the problem, you are to find the total magnetic field, $B$, due to the wire and magnetized cylinder. 1. Compute $H(s)$ using $oint vec{H} cdot dvec{l} = I_{free encl}$ 2. Compute $B(s)$ using $H(s)$ and $chi_m$. 3. Compute all bound surface currents, $K_b$ 4. Compute the bound volume current density, $J_b$ You can check your answer for $B$ by using $oint vec{B} cdot dvec{l} = mu_0 I_{encl}$ with $I_{encl}$ being all currents - the current on the wire and the bound surface and volume currents. Note that we did not start with this equation to find $B$ because we didn't know the bound currents.
Added by Ismael M.
Close
Step 1
To compute H(s), we use the formula f H - dl = Iyree enc. Since the wire carrying current I runs along the centerline of the cylinder, the magnetic field created by the wire will be in the azimuthal direction. Therefore, we can write H(s) = Hφ(s)φ, where Hφ(s) is Show more…
Show all steps
Your feedback will help us improve your experience
Ethan Deweese and 61 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.
Consider two infinitely long, concentric cylinders, with their axes along the z-axis. The inner solid cylinder has a radius a = 0.08 m and carries a current Ia = 4.5 A directed out of the page. This current is uniformly distributed throughout the cylinder. The outer (hollow) cylinder has a radius b = 0.16 m and carries current Ib = 7.5 A into the page as shown in the figure. 1) What is the magnitude of the magnetic field at point A (y = 0.04 m) due to the current in the two cylinders? |BA| = 5.62 × 10^(-6) T |BA| = 1.12 × 10^(-5) T |BA| = 2.25 × 10^(-5) T |BA| = 3.19 × 10^(-5) T |BA| = 1.5 × 10^(-5) T 2) What is the direction of the magnetic field at point A (y = 0.04 m) due to the current in the two cylinders? -x +y -y 3) What is the magnitude of the magnetic field at point C (y = 0.24 m) due to the current in the two cylinders? |BC| = 2.5 × 10^(-6) T |BC| = 10^(-5) T |BC| = 1.87 × 10^(-6) T
A long, straight, solid cylinder, oriented with its axis in the z-direction, carries a current whose current density is $J .$ The current density, although symmetrical about the cylinder axis, is not constant but varies according to the relationship $$ \begin{array}{rlrl}{\overrightarrow{\boldsymbol{J}}} & {=\frac{2 I_{0}}{\pi a^{2}}\left[1-\left(\frac{r}{a}\right)^{2}\right] \hat{\boldsymbol{k}}} & {} & {\text { for } \boldsymbol{r} \leq \boldsymbol{a}} \\ {} & {=\mathbf{0}} & {} & {\text { for } \boldsymbol{r} \geq a}\end{array} $$ where $a$ is the radius of the cylinder, $r$ is the radial distance from the cylinder axis, and $I_{0}$ is a constant having units of amperes. (a) Show that $I_{0}$ is the total current passing through the entire cross section of the wire. (b) Using Ampere's law, derive an expression for the magnitude of the magnetic field $\vec{B}$ in the region $r \geq a$ . (c) Obtain an expression for the current $I$ contained in a circular cross section of radius $r \leq a$ and centered at the cylinder axis. (d) Using Ampere's law, derive an expression for the magnitude of the magnetic field $\vec{B}$ in the region $r \leq a$ . How do your results in parts $(b)$ and $(d)$ compare for $r=a ?$
