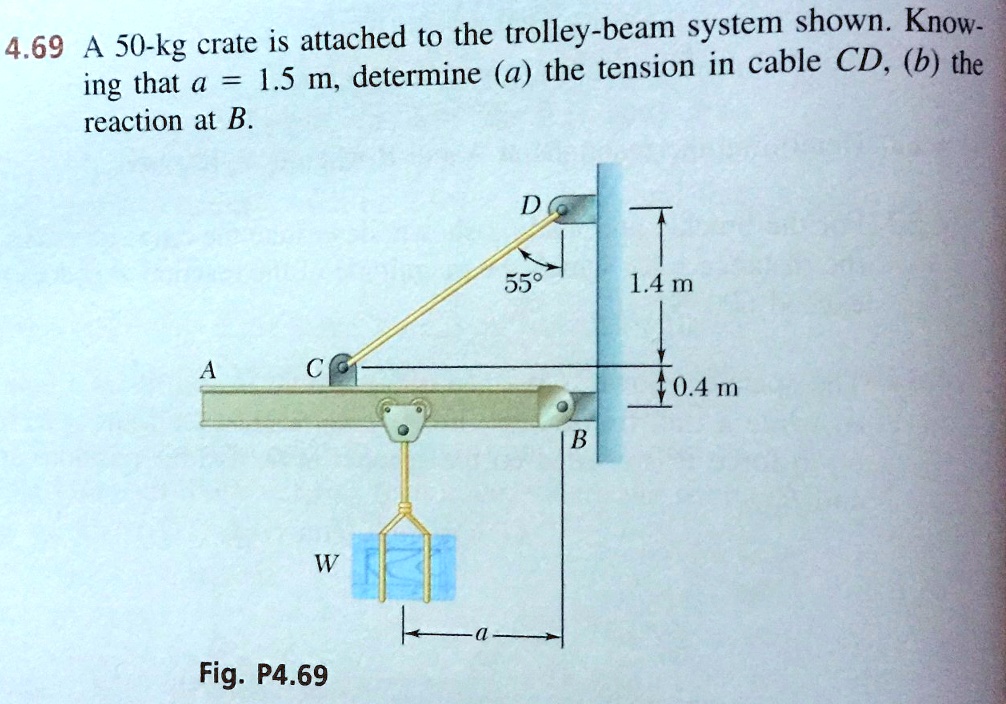

A 50-kg crate is attached to the trolley-beam system shown. Knowing that a = 1.5 m, determine (a) the tension in cable CD, (b) the reaction at B.
Added by Juan Jos- P.
Close
Step 1
However, without the visual aid of Figure P4.69, I'll make some assumptions to provide a general approach to solving a problem like this. Assuming the crate hangs from a point on the beam, causing a reaction at point B. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 77 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
5.68 through 5.73 Determine the reactions at the beam supports for the given loading. 90 lb/in. 40 lb/in B 6 in. Fig. P5.68
Sri K.

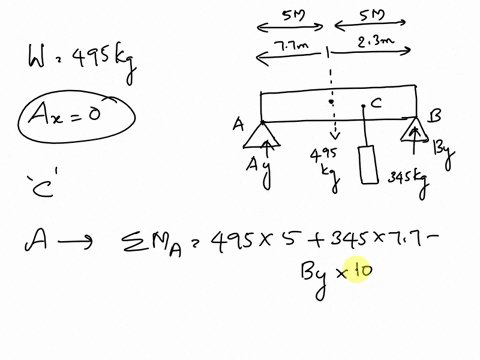

The 495-kg uniform I-beam supports the load shown. Determine the reactions at the supports. 7.7 m 2.3 m 345 kg Answers: Ax Ay By
Supreeta N.

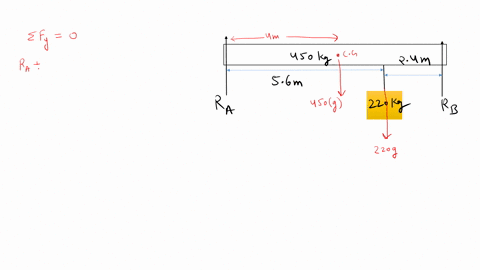

The 450-kg uniform I-beam supports the load of 220 kg as shown. Determine the reactions at the supports. (2850 N) 5.6 m 2.4 m 2156 N 220 kg
Ina R.
