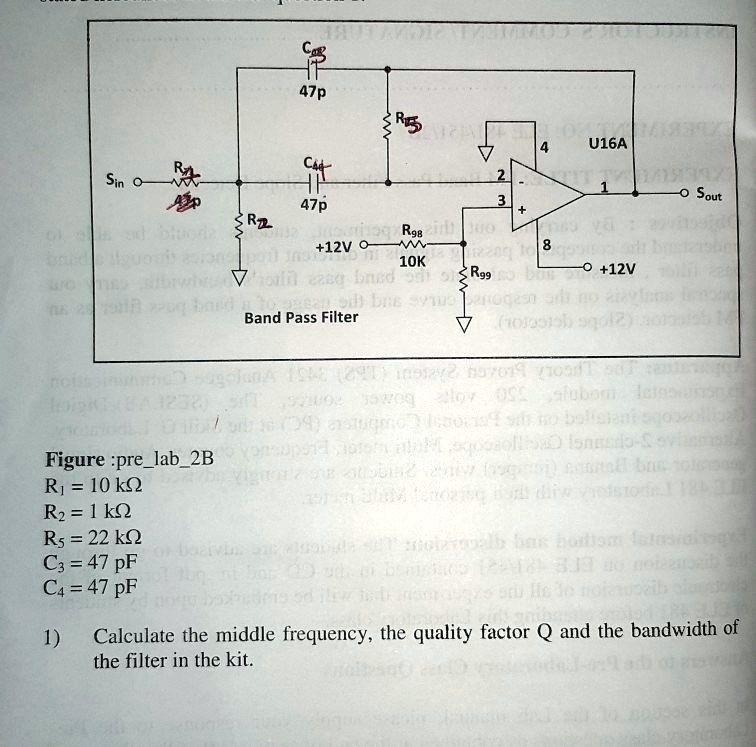

Band Pass Filter Figure :pre_lab_2B R1 = 10 k? R2 = 1 k? R5 = 22 k? C3 = 47 pF C4 = 47 pF 1) Calculate the middle frequency, the quality factor Q and the bandwidth of the filter in the kit.
Added by Abigail B.
Close
Step 1
From the circuit diagram, we can see that it is a bandpass filter. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 86 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
U16A Sin O RA 43p Sout 47p R Rg8 +12V 0 10K Rgg 0 +12V V Band Pass Filter V Figure: pre_lab_2B R=10kΩ R=1kΩ Rs=22 kΩ C=47pF C4=47 pF 1) Calculate the middle frequency, the quality factor Q, and the bandwidth of the filter in the kit.
Adi S.
The signal m(t) = 5cos(20πt) is fed into an FM modulator, and the output u(t) = 5cos[1000πt + 16π ∫ m(τ)dτ t −∞ ] is obtained. If the output of the modulator is passed through an ideal BPF with a center frequency of fc = 500 Hz and a bandwidth of 70 Hz, determine and plot the power of the frequency components at the output. (40p).
Supreeta N.
