4. Determine the phase angle by which $v_1(t)$ leads $i_1(t)$ and $v_1(t)$ leads $i_2(t)$, where $v_1(t) = 4cos(377t + 25^\circ) V$ $i_1(t) = 0.05cos(377t - 20^\circ) A$ $i_2(t) = -0.1cos(377t + 45^\circ) A$ 5. Find Z in the network in Figure 2.
Added by Julia R.
Close
Step 1
To find the phase angle, we need to compare the phase angles of the two signals. The phase angle of a cosine function can be found by looking at the coefficient of t in the argument of the cosine function. For v(t) = 4cos(377t + 25°) V, the phase angle is Show more…
Show all steps
Your feedback will help us improve your experience
Nishant Kumar and 70 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

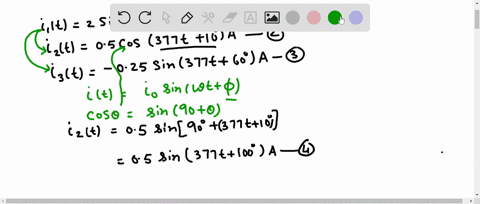

2- Three branch currents in a network are known to be i(t) = 2 sin(377t + 459) A, ix(t) = 0.5 cos(377t + 109) A, i3(t) = -0.25 sin(377t + 609) A. Determine the phase angles by which a) i(t) leads iz(t) b) i(t) leads is(t) [Answer: a) i1 leads i2 by 550 b) i leads is by 1659]
Jagjit Singh C.
Determine the phase angles by which $v_{1}(t)$ leads $i_{1}(t)$ and $v_{1}(t)$ leads $i_{2}(t),$ where $$\begin{array}{l}v_{1}(t)=4 \sin \left(377 t+25^{\circ}\right) \mathrm{V} \\i_{1}(t)=0.05 \cos \left(377 t-20^{\circ}\right) \mathrm{A} \\i_{2}(t)=-0.1 \sin \left(377 t+45^{\circ}\right) \mathrm{A}\end{array}$$
