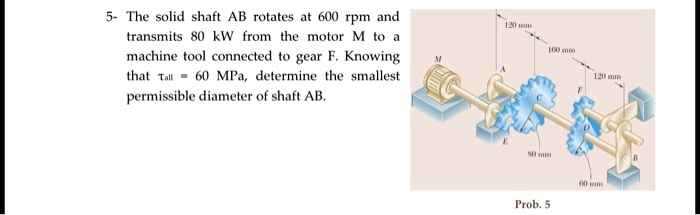

The solid shaft AB rotates at 600 rpm and transmits 80 kW from the motor M to a machine tool connected to gear F. Knowing that ?all = 60 MPa, determine the smallest permissible diameter of shaft AB.
Added by Patricia G.
Close
Step 1
Start with the equation for torque: T = M x N Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

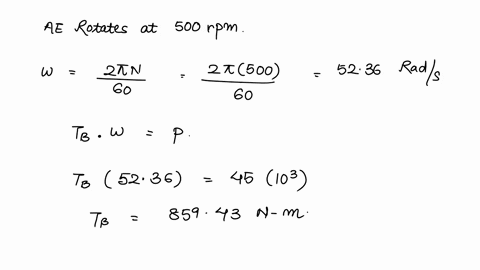

The solid shaft AE rotates at 500 rpm and transmits 45 kW from the motor M to the machine tools connected to gears G and H. Knowing that Tallow = 50 MPa and that 30 kW is taken off at gear G and 15 kW is taken off at gear H, determine the smallest permissible diameter of shaft AE. 100 mm 150 mm 200 mm 150 mm 75 mm 100 mm 100 mm
Sri K.
The A-36 solid steel shaft is 2 $\mathrm{m}$ long and has a diameter of $60 \mathrm{mm} .$ It is required to transmit $60 \mathrm{kW}$ of power from the motor $M$ to the pump $P .$ Determine the smallest angular velocity the shaft can have if the allowable shear stress is $\tau_{\text {allow }}=80 \mathrm{MPa}$
Gear $B$ supplies $15 \mathrm{kW}$ of power, while gears $A, C$ and $D$ withdraw $6 \mathrm{kW}, 4 \mathrm{kW}$ and $5 \mathrm{kW}$, respectively. If the shaft is made of steel with the allowable shear stress of $\tau_{\text {allow }}=75 \mathrm{MPa},$ and the relative angle of twist between any two gears cannot exceed 0.05 rad, determine the required minimum diameter $d$ of the shaft to the nearest millimeter. The shaft is rotating at 600 rpm.
