The A-36 solid steel shaft is 2 m long and has a diameter of 60 mm . It is required to transmit

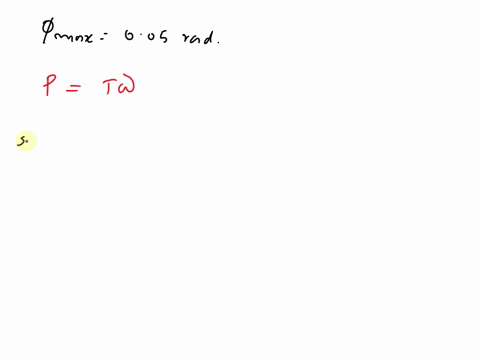

step 1 Let us first calculate the polar moment of inertia of the tubular shaft. So it will be j is equa

The A-36 solid steel shaft is 2 m long and has a diameter of...

The A-36 solid steel shaft is 2 $\mathrm{m}$ long and has a diameter of $60 \mathrm{mm} .$ It is required to transmit $60 \mathrm{kW}$ of power from the motor $M$ to the pump $P .$ Determine the smallest angular velocity the shaft can have if the allowable shear stress is $\tau_{\text {allow }}=80 \mathrm{MPa}$

Key Concepts

Torsion in Circular Shafts

This concept involves analyzing how a shaft twists when subjected to a torque. The study focuses on determining the distribution of shear stress across the cross-section of the shaft, understanding how factors like the shape and size of the cross-section impact the torsional behavior, and calculating the maximum stresses that occur as a result of the applied torque.

Polar Moment of Inertia

The polar moment of inertia is a geometrical property of a cross-section that quantifies its ability to resist torsional deformation. For circular shafts, it plays a key role in determining the shear stress developed due to an applied torque, as the stress is inversely proportional to this moment of inertia.

Relationship between Torque, Angular Velocity, and Power

In rotating systems, power is transmitted by applying a torque at a certain angular velocity. The relationship is defined by the expression P = T × ?, where P is the power transmitted, T is the applied torque, and ? is the angular velocity. This concept is crucial in designing mechanical components to ensure they operate under safe and efficient conditions.

Shear Stress Analysis in Shafts

This involves determining the maximum shear stress that occurs in a shaft when it is loaded in torsion. The calculation is based on the applied torque, the geometry of the shaft (via the polar moment of inertia), and the distance from the center of the shaft. Ensuring that this stress does not exceed the material’s allowable stress is critical for the structural integrity and safety of the shaft.
