5.42. We wish to design the degenerated stage of Fig. 5.137 for a voltage gain of 10 with Q1 operating at the edge of saturation. Calculate the bias current and the value of RC if ? = 100, IS = 5 × 10^-16 A, and VA = ?. Calculate the input impedance of the circuit. VCC = 2.5 V. Emitter resistor = 200 ?.

Name: 5.42. We wish to design the degenerated stage of Fig. 5.137 for a voltage gain of 10 with Q1 operating at the edge of saturation. Calculate the bias current and the value of RC if ? = 100, IS = 5 × 10^-16 A, and VA = ?. Calculate the input impedance of the circuit. VCC = 2.5 V. Emitter resistor = 200 ?.
Uploaded: 2023-07-12T17:53:25-08:00
Duration: 3 min 17 s
Channel: Adi S
Description: 5.42. We wish to design the degenerated stage of Fig. 5.137 for a voltage gain of 10 with Q1 operating at the edge of saturation. Calculate the bias current and the value of RC if ? = 100, IS = 5 × 10^-16 A, and VA = ?. Calculate the input impedance of the circuit. VCC = 2.5 V. Emitter resistor = 200 ?.

          5.42. We wish to design the degenerated stage of Fig. 5.137 for a voltage gain of 10 with Q1 operating at the edge of saturation. Calculate the bias current and the value of RC if ? = 100, IS = 5 × 10^-16 A, and VA = ?. Calculate the input impedance of the circuit. VCC = 2.5 V. Emitter resistor = 200 ?.

5.42. We wish to design the degenerated stage of Fig. 5.137 for a voltage gain of 10 with Q1 operating at the edge of saturation. Calculate the bias current and the value of RC if ? = 100, IS = 5 × 10^-16 A, and VA = ?. Calculate the input impedance of the circuit. VCC = 2.5 V. Emitter resistor = 200 ?.

Added by Kristin M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/12/2023

Step 1

- Voltage gain (Av) = 10 - β (beta) = 100 - \( I_S \) = \( 5 \times 10^{-16} \) A - \( V_{CC} \) = 2.5 V - \( R_C \) = 200 Ω - \( V_{CEsat} \) = 0.2 V (assumed typical value for saturation) Show more…

Show all steps

Thanks for your feedback!

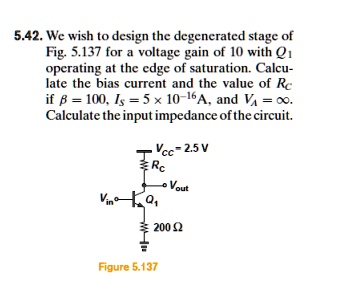

5.42. We wish to design the degenerated stage of Fig. 5.137 for a voltage gain of 10 with Q1 operating at the edge of saturation. Calculate the bias current and the value of RC if β = 100, IS = 5 × 10^-16 A, and VA = ∞. Calculate the input impedance of the circuit. VCC = 2.5 V, RC = 200. Figure 5.137.
