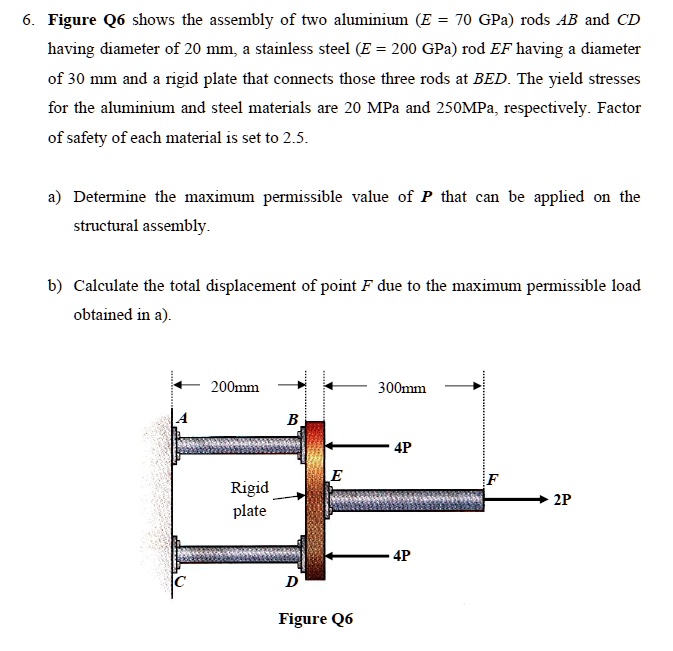

6. Figure Q6 shows the assembly of two aluminium (E = 70 GPa) rods AB and CD having diameter of 20 mm, a stainless steel (E = 200 GPa) rod EF having a diameter of 30 mm and a rigid plate that connects those three rods at BED. The yield stresses for the aluminium and steel materials are 20 MPa and 250MPa, respectively. Factor of safety of each material is set to 2.5. a) Determine the maximum permissible value of P that can be applied on the structural assembly. b) Calculate the total displacement of point F due to the maximum permissible load obtained in a). 200mm 300mm A B 4P E F Rigid plate 2P C D 4P Figure Q6
Added by Brett K.
Close
Step 1
5 = 100 MPa. - Area of steel rod (d = 30 mm): A_ef = (π/4) d^2 = (π/4)(30 mm)^2 = 225π mm^2 = 706.8583 mm^2. - Given σ_s = 2P / A_ef, set 2P / A_ef = 100 MPa → P_s = (100 MPa)(A_ef)/2. P_s = (100 N/mm^2)(706.8583 mm^2)/2 = 35,342.9 N = 35.343 kN. Show more…
Show all steps
