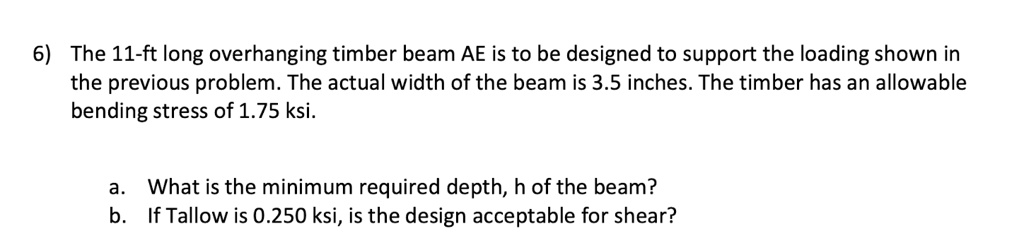

6) The 11-ft long overhanging timber beam AE is to be designed to support the loading shown in the previous problem. The actual width of the beam is 3.5 inches. The timber has an allowable bending stress of 1.75 ksi. a. What is the minimum required depth, h of the beam? b. If $T_{allow}$ is 0.250 ksi, is the design acceptable for shear?
Added by Teresa R.
Close
Step 1
To calculate the bending moment, we need to find the force acting at point E and the distance from point E to the support. Given: Length of the beam, AE = 11 ft Loading shown in the diagram From the diagram, we can see that there is a 2 kip load at point E. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

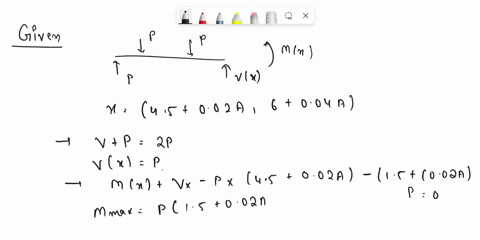

Determine the minimum depth $h$ of the beam to the nearest $\frac{1}{8}$ in. that will safely support the loading shown. The allowable bending stress is $\sigma_{\text {allow }}=21 \mathrm{ksi}$ and the allowable shear stress is $\tau_{\text {allow }}=10 \mathrm{ksi} .$ The beam has a uniform thickness of 3 in.

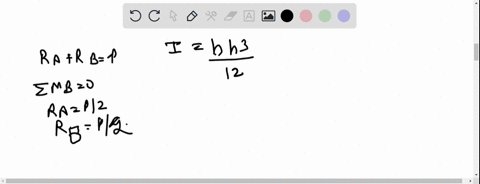

The timber beam has a width of 6 in. Determine its height $h$ so that it simultaneously reaches its allowable bending stress $\sigma_{\text {allow }}=1.50 \mathrm{ksi}$ and an allowable shear stress of $\tau_{\text {allow }}=50$ psi. Also, what is the maximum load $P$ that the beam can then support?
