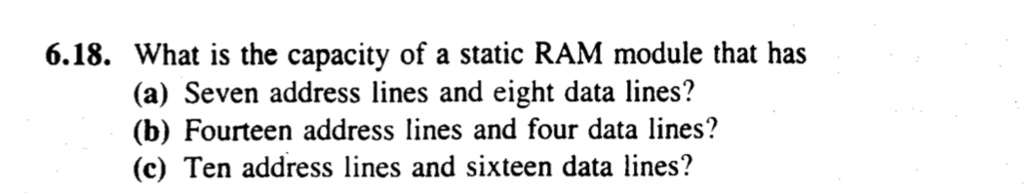

6.18. What is the capacity of a static RAM module that has (a) Seven address lines and eight data lines? (b) Fourteen address lines and four data lines? (c) Ten address lines and sixteen data lines?
Added by Robert J.
Close
Step 1

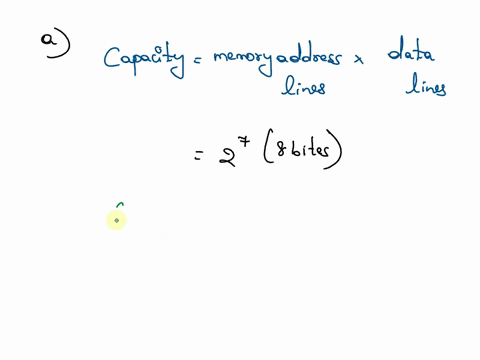

In this case, there are 2^7 = 128 unique addresses. The number of data lines determines the number of bits that can be stored at each address. In this case, there are 8 data lines, so each address can store 8 bits. Show more…
