Determine the internal normal force, shear force, and moment at point C of the beam. 200 N/m A C 3 m 3 m 400 N/m B
Added by Christine L.
Close
Step 1
The total load is the sum of the distributed loads over the length of the beam. The distributed load of 400 N/m over 3 m gives a total load of 1200 N. The distributed load of 200 N/m over 3 m gives a total load of 600 N. So, the total load on the beam is 1200 N + Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 77 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

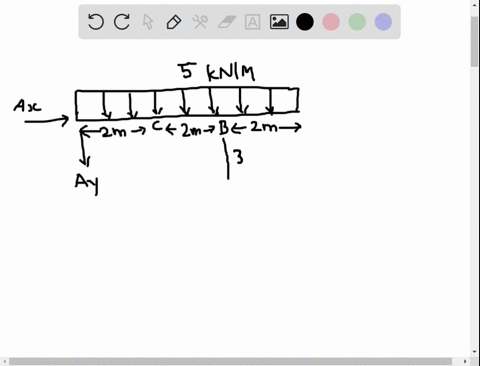

F1–6. Determine the resultant internal normal force, shear force, and bending moment at point C in the beam: 5 kN/m 3 m 2 m 2 m 2 m
Kumar A.
Determine the internal normal force, the shear force and moment acting at a section passing through point C in the beam. Draw free body diagrams to support your solution. 15 kN/m 8 m 24 m
Mehal M.
